• 39Q6-11160 Rotary Kit HYUNDAI Excavator Spare Parts Fit For R160W9A R170W9 R210NLC7

​

• Specifiion

Category	Swing Motor Parts
Name	Rotary Kit
Parts No	39Q6-11160
Machine Number	R110-7A R215LC7 R450LC7 R500LC7 R160W9A R170W9
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT
Packing	As request or standard packing

• Key functions

1.Restores Swing Performance: Replaces worn pinion gears, bearings, and seals to eliminate issues like jerky rotation, slow swing speed, or abnormal noise.

2.Prevents System Failure: Addresses wear before it leads to catastrophic damage (e.g., pinion gear failure causing swing jams or seal leaks leading to hydraulic system contamination).

3.Simplifies Maintenance: Bundles all essential parts for a swing drive overhaul, reducing downtime and ensuring consistent quality (vs. mixing aftermarket parts).

4.Ensures Safety: A properly functioning swing system (via kit installation) prevents unexpected movement of the upper structure, protecting operators and worksite personnel.

• Compatible models

7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R215LC7 R450LC7 R500LC7 RD210-7 RD210-7V RD220-7

9-SERIES CRAWLER EXCAVATOR R125LCR-9A R140LC9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S RB220LC9S RB260LC9S RD220LC9

9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R180W9A R180W9S R210W-9 R210W9A R210W9AMH R210W9MH R210W9S

F-SERIES CRAWLER EXCAVATOR HX160L HX180L HX220L HX220NL HX235L HX260L HX480L HX520L

F-SERIES WHEEL EXCAVATOR HW210 Hyundai

• More other rotary kit applied to HYUNDAI heavey machine

XKAY-00452 ROTARY KIT

R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, RC215C7, RC215C7H

XKAY-00528 ROTARY KIT

R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S

ZGAR-00271 ROTARY GROUP

R200W7

ZGAR-00282 ROTARY-HYD SECTION

R200W7

XJDD-00109 ROTARY GROUP

HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S

XJDD-00121 ROTARY-HYD SECTION

HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S

XKAY-00963 ROTARY KIT

R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S,...

39Q6-41260 ROTARY KIT

HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R300LC9SH, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9

39Q7-41130 ROTARY KIT

HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S

39Q8-41250 ROTARY KIT

HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43...

XKAY-02162 ROTARY KIT

R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S

XKAY-01927 ROTARY KIT

HX160L, HX180L, R210LC9

XJDD-01125 ROTARY-HYD SECTION

R160W9A, R170W9, R180W9A

XJDD-01124 ROTARY GROUP

R160W9A, R170W9, R180W9A

XKAY-01124 ROTARY KIT

HX140L, HX160L, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, RB160LC9S

XKAY-00528 ROTARY KIT

R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S

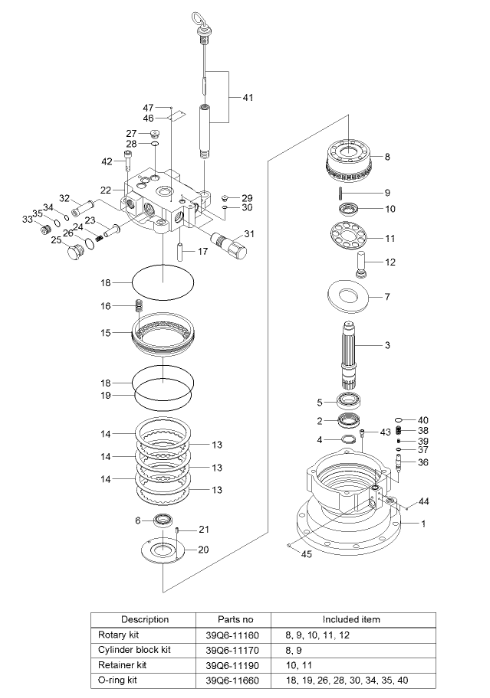

• Directory listing

Pos.	Part No	Qty	Parts name	Comments
*.	38N4-10150	[1]	SWING MOTOR ASSY	HYMS
*-2.	39N4-12100	[1]	SWING REDUCTION GEAR	SEE 4095
*-1.	38N4-11100	[1]	SWING MOTOR
1	39Q4-11110	[1]	CASING
2	39Q4-11120	[1]	OIL SEAL
3	39Q4-11130	[1]	SHAFT
4	39Q4-11140	[1]	RING-SNAP
5	39Q4-11150	[1]	BEARING-ROLLER(R/GEAR)
6	39Q4-11160	[1]	BEARING-ROLLER(COVER)
7	39Q4-11170	[1]	SWASH PLATE
*-3.	39Q6-11160	[1]	ROTARY KIT
*-31.	39Q6-11170	[1]	CYLINDER BLOCK KIT
8	39Q4-11200	[1]	CYLINDER BLOCK
9	39Q4-41230	[9]	SPRING-CYLINDER
*-32.	39Q6-11190	[1]	RETAINER KIT
10	39Q4-11220	[1]	BALL GUIDE
11	39Q4-11230	[1]	RETAINER PLATE(SHOE)
12	39Q4-11240	[9]	PISTON ASSY
13	39Q4-11270	[3]	FRICTION PLATE
14	39Q4-11280	[3]	SEPARATE PLATE
15	39Q4-11290	[1]	PARKING PISTON
16	39Q4-11300	[24]	SPRING(PARKING PISTON)
17	S471-600364	[1]	PIN-SPRING
K18.	Y172-036004	[2]	O-RING
K19.	Y172-034004	[1]	O-RING
20	39Q4-11310	[1]	VALVE PLATE
21	S471-600164	[2]	PIN-SPRING
22	39Q4-11320	[1]	VALVE CASING
23	39Q4-11330	[2]	CHECK VALVE
24	39Q4-11340	[2]	SPRING(CHECK V/V)
25	39Q4-11350	[2]	PLUG
K26.	31N8-19650	[2]	O-RING
27	39Q6-41750	[2]	PLUG
K28.	S631-011004	[2]	O-RING
29	39Q6-41780	[1]	PLUG
K30.	S631-008004	[1]	O-RING
31	39N4-11360	[2]	RELIEF VALVE ASSY
32	39Q6-11420	[2]	REACTIONLESS VLV ASSY
33	39Q4-11520	[2]	PLUG
K34.	S631-012004	[2]	O-RING
K35.	S631-018004	[2]	O-RING
36	39Q4-11380	[1]	SPOOL(TIME DELAY V/V)
37	39Q4-11390	[1]	SEAT-SPRING(T/DELAY V/V)
38	39Q4-11400	[1]	SPRING (TIME DELAY V/V)
37	39Q4-11410	[1]	RESTRICTOR
K40.	S631-020004	[1]	O-RING
41	39Q4-11421	[1]	LEVEL GAUGE ASSY
42	S109-140456	[4]	BOLT-SOCKET
43	P220-430202	[1]	PLUG-HEX
44	39Q4-11470	[2]	EXPANDER
45	39Q4-11480	[1]	EXPANDER
46	38N4-11490	[1]	NAME PLATE
47	39Q6-41800	[2]	RIVET
K.	39Q6-11660	[1]	SEAL-OIL

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
