• 11N6-90031 11LB-90112 A/C Control Panel HYUNDAI Excavator Spare Parts Fit For R110-7

​

• Specifiion

Category	Air Conditioner Parts
Name	A/C Control Panel
Parts No	11N6-90031 11LB-90112
Machine Number	R110-7A R140LC-7 R160LC7A R180LC7
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT
Packing	As request or standard packing

• Key functions

1.Visibility Maintenance: Clears the windshield of weather (rain, snow) and work-site debris (dust, dirt), ensuring the operator can see obstacles, controls, and job details—critical for accident prevention.

2.Durability in Harsh Environments: Withstands extreme temperatures, impacts, and corrosion common in construction/mining settings, avoiding frequent replacements.

3.Low-Maintenance Operation: The rigid design and corrosion-resistant materials minimize wear, while the tool-free blade attachment simplifies upkeep.

4.Vibration Resistance: Maintains blade contact and stability even when the machine is operating on rough terrain, preventing streaking or incomplete wiping

• Compatible models

7 SERIES WHEEL EXCAVATOR R140W7 R140W7A R170W7 R170W7A R200W7 R200W7A

7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R160LC7 R160LC7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 R210NLC7A R250LC7 R250LC7A R290LC7 R290LC7A R290LC7H R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R80-7 R800LC7A RC215C7 RC215C7H RD510LC-7 Hyundai

• More other control applied to HYUNDAI heavey machine

61N1-40101 CONTROL ROD WA

R80-7

31QD-81400 CONTROL ROD PIPING

R800LC-9, R800LC7A

31QD-86400 CONTROL ROD PIPING

R800LC-9, R800LC7A

61ND-40012 CONTROL ROD ASSY

R800LC7A

61ND-40081 CONTROL ROD WA

R800LC7A

61ND-40151 CONTROL LINK WA-LH

R800LC7A

61ND-40031 CONTROL LINK WA-RH

R800LC7A

63NB-43011 CONTROL ROD ASSY

R800LC7A

63NB-43051 CONTROL ROD WA

R800LC7A

61QD-40080BG CONTROL ROD WA

R800LC7A

61QD-40020BG CONTROL LINK-LH

R800LC7A

61QD-40030BG CONTROL LINK WA-RH

R800LC7A

YCAC-01514 CONTROL VALVE-SOL AUX

HSL800T

YCAC-01624 CONTROL VALVE ASSY

HSL680T

YCAC-02384 CONTROL LEVER-RH

HSL680T

YCAC-02383 CONTROL LEVER-LH

HSL680T

XKCM-00004 CONTROL CARTRIDGE

HSL650-7A, HSL850-7A

XKCM-00027 CONTROL-HYDRAULIC

HSL650-7A, HSL850-7A

81S7-00210 CONTROL LEVER-RH

HSL650-7

81S7-00200 CONTROL LEVER-LH

HSL650-7

81S7-00020 CONTROL LEVER-RH

HSL650-7, HSL800-7

81S7-00010 CONTROL LEVER-LH

HSL650-7, HSL800-7

4461340 CONTROL SLEEVE ASSY

HSL650-7, HSL800-7, HSL810

4461065 CONTROL HANDLE

HSL650-7, HSL800-7

11N6-90331 CONTROL ASSY

R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290...

11N6-90430 CONTROL ASSY-FATC

R110-7, R140LC-7, R140LC-7A, R140W7, R140W7A, R160LC7, R160LC7A, R170W7, R170W7A, R180LC7, R180LC7A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R290LC7, R290LC7A, R300...

11N6-90431 CONTROL ASSY-FATC

R110-7, R110-7A, R140LC-7, R140LC-7A, R140W7, R160LC7, R170W7, R180LC7, R200W7, R200W7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, R210NLC7A, R250LC7, R250LC7A, R290LC7A, R300LC7, R305LC7, R320LC7, R320L...

XKAH-01462 CONTROL ASSY

R110-7, R110-7A, RD110-7

61N3-40011 CONTROL ROD ASSY

R110-7

61N3-40012 CONTROL ROD ASSY

R110-7

61N3-40101 CONTROL ROD WA

R110-7

61N3-40200 CONTROL ROD WA

R110-7

61N3-40021 CONTROL LINK-LH

R110-7

61N3-40031 CONTROL LINK-RH

R110-7

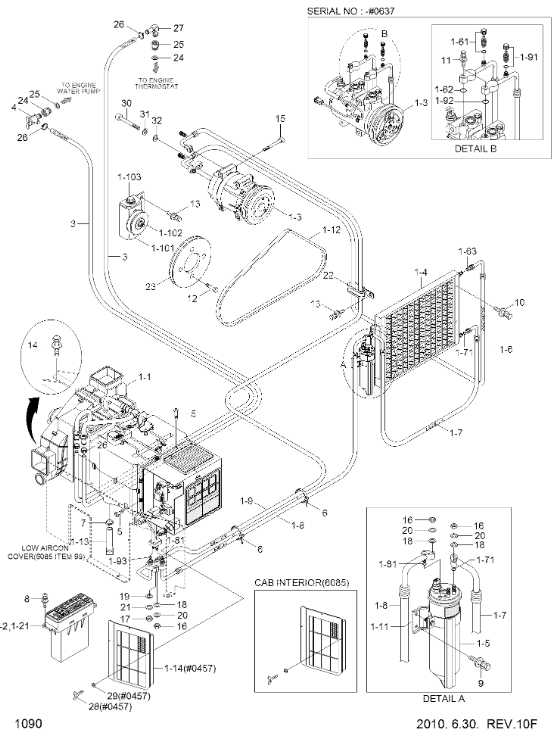

• Directory listing

Pos.	Part No	Qty	Parts name	Comments
1	11N3-90010	[1]	AIR CON & HEATER ASSY
1-1.	11N6-90020	[1]	AIRCON & HEATER UNIT
1-1.	11N6-90021	[1]	AIRCON & HEATER UNIT
1-2.	11N6-90031	[1]	CONTROL ASSY-SEMI
1-21.	11N6-90850	[1]	DECAL-A/C & HEATER
1-3.	11N6-90040	[1]	COMPRESSOR ASSY
1-3.	11Q6-90040	[1]	COMPRESSOR ASSY
1-4.	11EM-90050	[1]	CONDENSER ASSY
1-5.	11N6-90060	[1]	DRIER-RECEIVER
1-6.	11N4-90190	[1]	HOSE-DISCHARGE
1-6.	11N4-90191	[1]	HOSE-DISCHARGE
1-61.	A304000301-4	[1]	CHARGE VALVE ASSY
1-62.	A305000206-2	[1]	O-RING
1-63.	A305000205-2	[1]	O-RING
1-7.	11N4-90080	[1]	HOSE(A)-LIQUID
1-71.	A305000209-2	[2]	O-RING
1-8.	11N4-90090	[1]	HOSE(B)-LIQUID
1-81.	A305000209-2	[2]	O-RING
1-9.	11N4-90100	[1]	HOSE-SUCTION
1-9.	11N4-90101	[1]	HOSE-SUCTION
1-91.	A304000401-4	[1]	CHARGE VALVE ASSY
1-92.	A310069299-2	[1]	O-RING
1-93.	A305000203-2	[1]	O-RING
1-10.	11N6-90110	[1]	PULLEY-IDLE
1-101.	A4760-508-00-2	[1]	BRACKET-PULLEY
1-102.	A4700-511-01-2	[1]	PULLEY-IDLE	INCL 1-103
1-103.	A8900-518-03-3	[1]	BOLT-TENSION
1-11.	11N6-90120	[1]	BRACKET-R/DRIER
1-12.	11E4-3601	[1]	V-BELT
1-13.	11EK-92090	[1]	HOSE-DRAIN
1-14.	11N6-90340	[1]	FILTER-REC	SEE 6085
3	11E6-92080	[2]	HOSE
4	14L1-01350	[1]	VALVE-HEATER
5	S152-040122	[4]	SCREW-TAPPING
6	S551-035146	[2]	TIE-WIRE
7	S520-020000	[1]	CLAMP-HOSE
8	S131-051546	[4]	SCREW-W/WASHER
9	S035-062022	[2]	BOLT-W/WASHER
10	S035-082022	[4]	BOLT-W/WASHER
11	S035-083526	[2]	BOLT-W/WASHER
12	S109-100406	[4]	BOLT-SOCKET
12	S109-100506	[4]	BOLT-SOCKET
13	S037-102022	[9]	BOLT-W/WASHER
14	S037-122522	[4]	BOLT-W/WASHER
15	S109-080956	[3]	BOLT-SOCKET
15	S109-080856	[3]	BOLT-SOCKET
16	S205-061002	[3]	NUT-HEX
17	S205-081002	[1]	NUT-HEX
18	S403-062002	[3]	WASHER-PLAIN
19	S403-082002	[1]	WASHER-PLAIN
20	S411-060002	[3]	WASHER-SPRING
21	S411-080002	[1]	WASHER-SPRING
22	S543-40002	[4]	CLAMP-TUBE
23	11N3-92010	[1]	PULLEY-AIR CON
23	11N3-92030	[1]	PULLEY-AIR CON
24	11N5-93010	[2]	CONNECTOR-HEAT VLV
25	P392-160000	[2]	WASHER-COPPER
26	S572-220006	[4]	CLAMP-HOSE,WIRE TYPE
27	11N3-92020	[1]	ELBOW
28	S091-060166	[3]	BOLT-WING
29	S403-062006	[3]	WASHER-PLAIN
30	S018-100356	[1]	BOLT-HEX
31	S411-100006	[1]	WASHER-SPRING
32	S403-10200B	[1]	WASHER-PLAIN

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
