| Category | KOBELCO Spare Parts |

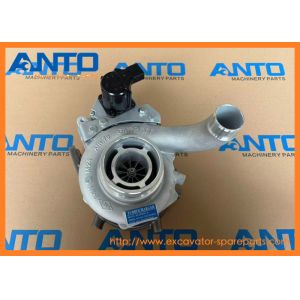

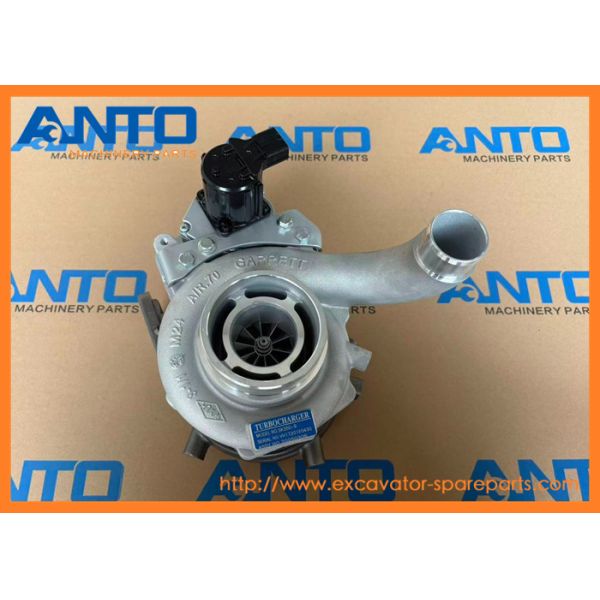

| Name | Turbocharger |
| Parts No | VH17201E0430 |
| Machine Number | SK350-9 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Power Boost: Increases engine output by 30–40% compared to naturally aspirated engines. For example, it enables the SK300LC-10 excavator to deliver more digging force and faster cycle times when loading trucks or breaking rock.
2.Fuel Efficiency: More complete combustion reduces fuel consumption by 5–10% (vs. non-turbo engines) during high-load operation. This lowers operating costs for equipment owners.
3.Emission Reduction: Improved combustion minimizes harmful emissions (NOₓ, particulate matter) by ensuring fuel is burned cleanly—helping Kobelco equipment meet global emission standards (EU Stage V, US Tier 4 Final).
4.Altitude Adaptability: Compensates for reduced air density at high altitudes, ensuring the engine maintains full power even in mountainous construction sites.
HEAVY EQUIPMENT SK350-9 Kobelco
- More other turbocharger applied to KOBELCO heavey machine
| VHS1760E0201 TURBOCHARGER |
| SK350-9 |
| |
| 241004640A TURBOCHARGER |
| SK350-8 |
| |
| S1760-E0200 TURBOCHARGER |
| SK350-8 |
| |
| VAME078871 TURBOCHARGER |
| SK290LC-6E, SK330LC-6E |
| |
| VAME078660 TURBOCHARGER |
| SK290LC, SK330LC |
| |
| 2854575 TURBOCHARGER |
| SK260, SK295-8 |
| |
| VAME442003 TURBOCHARGER |
| SK250LC-6E |
| |
| VI8971159720 TURBOCHARGER |
| SK135SR, SK120, SK115SRDZ, SK135SRL, SK135SRLC, SK120LC |
| |
| VAME088752 TURBOCHARGER |
| SK200, SK200LC |
| |
| VI8970114741 TURBOCHARGER ASM. TDO 4H |
| SK150LC |
| |
| VI8943675161 TURBOCHARGER |
| SK120LC, LK450, SK120 |
| |
| VX6505725020 TURBOCHARGER |
| SK850 |
| |
| S1750-E0150 TURBOCHARGER |
| SK485LC-9 |

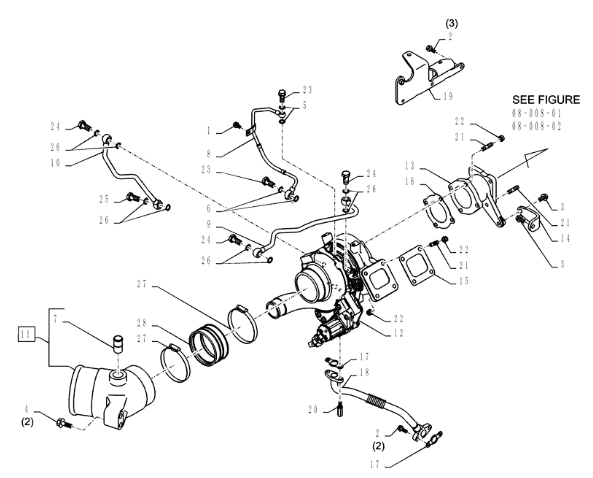

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VHSH55210816 | [1] | FLANGE BOLT | KOB |
| 2 | VHSH55210825 | [5] | FLANGE BOLT | KOB |
| 3 | VHSH55211020 | [2] | FLANGE BOLT | KOB |
| 4 | VHSH55211045 | [2] | FLANGE BOLT | KOB |
| 5 | VHSL72201210 | [2] | WASHER | KOB Soft |
| 6 | VHSL72201415 | [2] | WASHER | KOB Soft |
| 7 | VHS122211680 | [1] | PIPE | KOB Vent |
| 8 | VH15407E0080 | [1] | PIPE | KOB Turbo Oil Inlet |
| 9 | 16332-E0420 | [1] | PIPE | KOB Water Outlet, No.1 |
| 10 | VHS166913300 | [1] | PIPE | KOB Coolant |
| 11 | VH17103E0G10 | [1] | PIPE | KOB Intake, Includes Ref. 7 |
| 12 | VH17201E0430 | [1] | TURBOCHARGER | KOB Superseded by part number: VH17201E0432 |
| 13 | VH17291E0440 | [1] | ELBOW | KOB Turbine Outlet |
| 14 | VHS174582960 | [1] | BRACKET | KOB Exh. Pipe |
| 15 | VHS241091820 | [1] | GASKET | KOB |
| 16 | VHS241091830 | [1] | GASKET | KOB |
| 17 | S2413-51121 | [2] | GASKET | KOB Oil, Outlet |
| 18 | VHS241721270 | [1] | PIPE | KOB Oil, Outlet |
| 19 | VHS170AE0040 | [1] | STAY | KOB |
| 20 | VHSZ11908042 | [2] | BOLT | KOB |
| 21 | VHSZ12610015 | [6] | STUD | KOB |
| 22 | VHSZ17810012 | [8] | NUT | KOB Flange |
| 23 | VHSZ40112001 | [1] | BOLT | KOB |
| 24 | VHSZ40114004 | [4] | BOLT | KOB |
| 25 | VHSZ40114007 | [1] | BOLT | KOB |
| 26 | VHSZ43014003 | [8] | WASHER,14.6mm ID x 18.6mm OD x 1.4mm Thk | KOB Soft Superseded by part number: VHSL72301414 |
| 27 | VHSZ46011006 | [2] | CLAMP | KOB |
| 28 | VHSZ92033892 | [1] | INTAKE AIR HOSE | KOB |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
