• 2797787 279-7787 Exhaust Manifold For Excavator Engine Parts 311C 311D LRR 312C 312C L 312D

• Specifiion

Appliion	C A T Excavator Engine Parts
Name	Exhaust Manifold
Parts No	2797787 279-7787
Model	311C 311D LRR 312C 312C L 312D 312D L 313D 314C 314D CR 314D LCR 315D L 318D L 319D 319D L 319D LN
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Function

1.Collecting and guiding exhaust gases: The exhaust manifold is connected to each cylinder of the engine. Its primary function is to collect the exhaust gases generated by each cylinder during the combustion process and channel them into a single exhaust pipe. This effectively directs the exhaust gases away from the engine and out of the vehicle through the exhaust system, ensuring the smooth operation of the engine.

2.Reducing exhaust backpressure: A well - designed exhaust manifold can minimize exhaust resistance and backpressure. If the exhaust backpressure is too high, it will affect the engine's performance, resulting in problems such as insufficient power and increased fuel consumption. By optimizing the design of the manifold, the smooth flow of exhaust gases can be ensured, thus improving engine efficiency and power output.

• Applicable models

EXCAVATOR 311C 311D LRR 312C 312C L 312D 312D L 313D 314C 314D CR 314D LCR 315D L 318D L 319D 319D L 319D LN

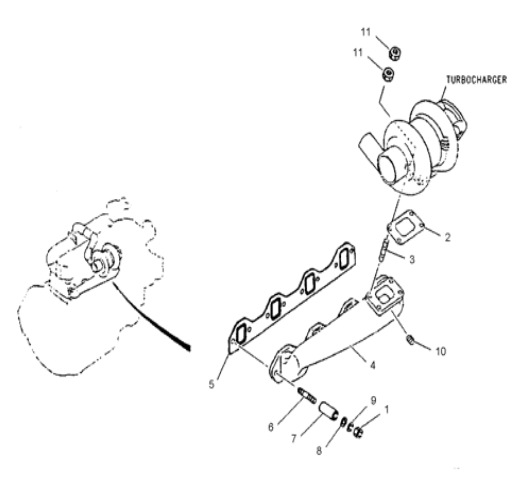

• alog parts list​

Pos.	Part No	Qty	Parts name	Comments
1	5C-7261 M	[8]	NUT (M8X1.25-THD)
2	5I-7933	[1]	GASKET
3	178-6554 M	[4]	STUD (M10X1.5X15-MM, M10X1.25X20-MM)
4	279-7787	[1]	MANIFOLD-EXHAUST
5	196-8007	[1]	GASKET
6	5I-7549	[8]	STUD (M8X1.25X86-MM)
7	5I-7550	[8]	SPACER
8	239-6604	[8]	WASHER
9	3B-4505	[8]	LOCKWASHER
10	095-0965	[1]	PLUG
11	5I-7633	[8]	NUT (M10X1.25-THD)
	M		METRIC PART

​

• More manifold parts supplied to C A T machine

1967986 MANIFOLD GP-EXHAUST

311C, 312C L

2128463 MANIFOLD GP-EXHAUST

311C, 312C, 312C L, 314C

2128462 MANIFOLD GP-INLET

311C, 312C, 312C L, 314C

2964791 MANIFOLD GP-EXHAUST

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN

8T8806 MANIFOLD

120H, 120H ES, 120H NA, 12H, 12H ES, 12H NA, 135H, 135H NA, 140H, 140H ES, 140H NA, 143H, 160H, 160H ES, 160H NA, 163H NA, 30/30, 307C, 308C, 311C, 312C L, 314C, 315C, 318C, 320C, 321C, 322C, 325C, 33...

1968005 MANIFOLD

311C, 312C L

1970198 MANIFOLD GP-CONTROL

312C, 315C, 318C, 319C, 320C, 322C, 322C FM, 325C, 325C FM, 330C FM, 330C L, 330C MH

2128487 MANIFOLD

311C, 312C, 312C L, 314C

6C6760 MANIFOLD

311D LRR, 311F LRR, 312D, 312D L, 312D2, 312E, 312E L, 314D CR, 314D LCR, 314E CR, 314E LCR, 315D L, 316E L, 318D2 L, 318E L, 319D, 319D L, 319D LN, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320D, 320D ...

3109528 MANIFOLD

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN

• Other hot selling parts

1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft

2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y

3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y

4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder

5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve

6.Electrical parts: Wiring harness, Controller, Monitor

7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 6-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
