3043140 Nut Excavator Travel Motor Fitting For HITACHI CX400 CX500 CX500DR CX500S CX550

• 3043140 Nut Excavator Travel Motor Fitting For HITACHI CX400 CX500 CX500DR CX500S CX550

• Specifiion

Product name	Nut
Part number	3043140
Model	CX400 CX500 CX500DR CX500S CX550 EX300-5 EX300LC-5M EX300LCLL-5 EX300LCLL-5M EX345USR(LC) EX350H-5 EX350K-5 EX370-5M EX370HD-5 EX370LL-5M EX385USR EX400 EX400-3 EX400-3C EX400-5 EX450H-5 MX5015 SCX2800-2 SCX400 SCX400-C3 SCX400T SCX400T-C3 SCX500 SCX500-C SCX550
egory group	HITACHI Excavator Travel Motor
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

• Function

1.Achieving Connection and Fixation: The Hitachi 3043140 nut is mainly used in conjunction with bolts or screws. When the bolt passes through two or more parts, the nut is installed at the other end of the bolt and rotated to form a threaded connection, thereby tightly connecting the parts together. This can provide a stable connection interface to ensure that the components are safely and reliably connected and fixed under different load conditions.

2.Convenient for Assembly and Disassembly: The use of the Hitachi 3043140 nut makes the connection of parts in mechanical equipment firm and easy to assemble and disassemble. During maintenance and repair, the nut can be easily unscrewed to separate the connected parts, which improves the convenience of equipment maintenance and repair.

• Compatible models

HITACHI

CX400 CX500 CX500DR CX500S CX550 EX300-5 EX300LC-5M EX300LCLL-5 EX300LCLL-5M EX345USR(LC) EX350H-5 EX350K-5 EX370-5M EX370HD-5 EX370LL-5M EX385USR EX400 EX400-3 EX400-3C EX400-5 EX450H-5 MX5015 SCX2800-2 SCX400 SCX400-C3 SCX400T SCX400T-C3 SCX500 SCX500-C SCX550

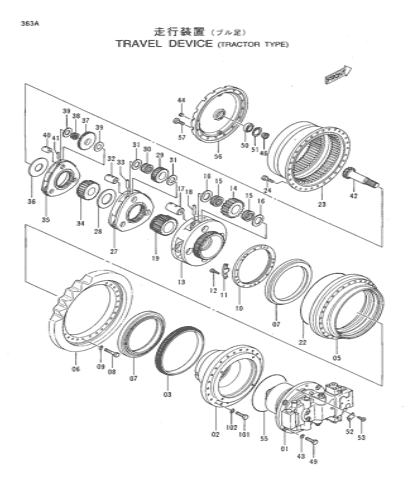

• Diagram parts list​

Pos.	Part No	Qty	Parts name	Comments
01-57.	9202363	[1]	TRAVEL DEVICE
1	4456032	[1]	MOTOR;OIL
2	1018611	[1]	HOUSING
3	4245703	[1]	SEAL;GROUP
5	1018617	[1]	DRUM
6	1028443	[1]	SPROCKET
7	4200411	[2]	BRG.;ROL.
8	J932290	[30]	BOLT
9	A590922	[30]	WASHER;SPRING
10	3043140	[1]	NUT
11	3043141	[1]	PLATE;LOCK
12	J901222	[2]	BOLT
13	1015883	[1]	CARRIER
14	3053195	[4]	GEAR;PLANETARY
15	4204106	[8]	BRG.;NEEDLE
16	4219595	[8]	PLATE;THRUST
17	4263903	[4]	PIN
18	4207947	[4]	PIN;SPRING
19	3053786	[1]	GEAR;SUN
22	4203187	[1]	O-RING
23	1018360	[1]	GEAR;RING
24	J931845	[30]	BOLT
27	1015523	[1]	CARRIER
28	4263905	[1]	SPACER
29	3053194	[3]	GEAR;PLANETARY
30	4228365	[3]	BRG;NEEDLE
31	4201968	[6]	PLATE;THRUST
32	4263902	[3]	PIN
33	4203180	[3]	PIN;SPRING
34	3063377	[1]	GEAR;SUN
35	1018602	[1]	CARRIER
36	4331904	[1]	SPACER
37	3063290	[3]	GEAR;PLANETARY
38	4246786	[3]	BRG.;NEEDLE
39	4269295	[6]	PLATE;THRUST
40	4263901	[3]	PIN
41	4222030	[3]	PIN;SPRING
42	2034540	[1]	SHAFT;PROP.
43	A590918	[4]	WASHER;SPRING
44	4279343	[3]	PLUG
46	4288767	[1]	PIN;STOPPER
49	J911860	[4]	BOLT
50	4274541	[1]	BRG.;BALL
51	991725	[1]	RING;RETAINING
52	3053559	[1]	NAME-PLATE
53	M492564	[2]	SCREW;DRIVE
55	4271596	[1]	O-RING
56	1023348	[1]	COVER
57	4373463	[16]	BOLT;SHOE
101	J932290	[48]	BOLT
102	4089822	[48]	WASHER

• More other nut parts fit HITACHI machinery​

0776406 NUT

ZX1000K-3, ZX180LC, ZX180LC-AMS, ZX180LC-HCME, ZX180W, ZX180W-AMS, ZX200, ZX200-3G, ZX200-E, ZX210-AMS, ZX210-HCME, ZX210H, ZX210H-3G, ZX210K, ZX210K-3G, ZX210N-AMS, ZX210N-HCME, ZX210W, ZX210W-AMS, Z...

4295785 NUT

EX450MT-5, EX450MTH-5, EX550, EX550-5 JPN, EX600H-3 JPN, EX600H-5 JPN, PZX450-HCME, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX460LCH-AMS, ZX460LCH-HCME, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX480MT, ZX...

1122390051 NUT; CONNROD

600C LC JD, 670G LC, 870G LC, FV30, LX300-7, TL1100-3, ZR260HC, ZX1800K-3, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX450H-HHE, ZX450LC-3-DH, ZX450LC-3-M, ZX460LCH-AMS, ZX460LCH-HCME, ZX470-5G, ZX470H-3, ZX4...

1197110290 NUT; GEN

330C LC JD, 370C JD, 470G LC, 600C LC JD, 670G LC, 870G LC, CX650-2, EG70R-3, FV30, LX130-7, LX160-7, LX300-7, MA200, SCX300-C, SCX400, SCX400T, SCX500-C, SCX500W, SCX550-C, SCX700, SCX700-2, SR2000G,...

1157795080 NUT; ADJ SCREW LK,INJ PUMP GOV

135C RTS JD, 225CL RTS JD, 270C LC JD, 330C LC JD, 370C JD, 600C LC JD, CD1500, CD2000, CP215, CX1000, CX1000-C, CX1800, CX2000, CX650-2, DX40-C, DX40M-C, DX40MM-C, DX45-C, DX45M-C, DX45MM-C, EX120-5,...

0911801140 NUT; STARTER

670G LC, 870G LC, TL1100-3, ZR260HC, ZX1800K-3, ZX450-3, ZX450-3F, ZX450LC-3-DH, ZX450LC-3-M, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX480LCK-3, ZX500LC-3, ZX500LC-3F, ZX520LCH-3, ZX520LCH-3F, ZX52...

4467816 NUT;U

EX1200-5, EX1200-5C, EX1200-5D, EX1200-6, PZX450-HCME, TL1100-3, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX450H-HHE, ZX460LCH-AMS, ZX460LCH-HCME, ZX470-5G, ZX470H-3, ZX470H-3F, ZX470H-5G, ZX470LC-5B, ZX470L...

1094200050 NUT; TURBOCHARGER

330C LC JD, 370C JD, 470G LC, 600C LC JD, 670G LC, 870G LC, CD1500, CD2000, CX650-2, EX200, EX300-2, EX300-3, EX300-3C, EX300-3HHE, EX300-5, EX300-5HHE, EX300LCLL-5, EX310H-3C, EX345USR(LC), EX350H-5,...

4488099 NUT

PZX450-HCME, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX460LCH-AMS, ZX460LCH-HCME, ZX470H-3, ZX470H-3F, ZX470R-3, ZX470R-3F, ZX480MT, ZX480MTH, ZX500LC, ZX500LC-3, ZX500LC-3F, ZX500LCH, ZX520LCH-3

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our Company

Anto Machinery is made up of a professinal engineering team, with high experirence in genuine, OEM and aftermarket parts.

for excavators, bulldozers, forklift, loaders, and crane covering brand Hyundai , Sany , DOOSAN , Vo-lvo , HITACHI , KOBELCO , KOMATSU , KATO , JCB , LIEBHERR , SANY , XCMG , XGMA , LIUGONG , SHANTUI , etc.

We are with full range of data information for the engine parts, hydraulic parts ,seal parts, electrical parts, gear & reducer parts, cylinder parts, bucket parts, cab parts, etc. As exporting about 20 years, we now have customers the whole world including the countries Brazil, Mexico, Colombia, Venezuela, Peru, America, Canada, Russia, Poland, Ireland, Sweden, France, England, Romania, Spain, Portugal, Ukraine, Lithuania, Norway, Italy, Finland, UAE, Saudi Arabia, Israel, Iraq, Sudan, Kenya, Tanzania, Sri Lanka, Kazakhstan, Pakistan, Burma, Thailand, Vitenam, Philippines, Indonesia, Australia, New Zealand, etc.

Thanks very much to our customers support and big trust.

We will keep improving everyday. Any of your encouragement in inquiry and order is our motivation.

We warm welcome your visiting and consulting on your needed parts.
