3035853 Drive Gear Excavator Hydraulic Pump Fitting For HITACHI EX270 EX300 EX300-2

• 3035853 Drive Gear Excavator Hydraulic Pump Fitting For HITACHI EX270 EX300 EX300-2

• Specifiion

Product name	Drive Gear
Part number	3035853
Model	EX270 EX300 EX300-2 EX300-3 EX300-3C EX300-5 EX300-5HHE EX300LC-5M EX300LCLL-5 EX300LCLL-5M EX310H-3C EX345USR(LC) EX350H-5 EX350H-5HHE EX350K-5 EX370-5M EX370HD-5 EX370LL-5M EX385USR LX80RS-2 ZX330 ZX330-3G ZX330-5G
egory group	HITACHI Excavator Hydraulic Pump
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

• Function

1.Power transmission: The 3035853 drive gear is specifically designed for the Hitachi EX300 excavator. In the excavator's hydraulic system, it undertakes the important task of power transmission. It converts the hydraulic power provided by the hydraulic pump into mechanical energy, providing the necessary power for the movement of components such as the excavator's arm, bucket, and boom, thus ensuring the normal operation of the excavator.

2.Efficiency enhancement: This drive gear features a planetary gear unit design. The planetary gear unit has the advantages of high power density, large transmission ratio, and stable operation. It can enhance the transmission efficiency of the drive gear, making the power transmission more efficient and reducing energy loss during the transmission process

• Compatible models

HITACHI

EX270 EX300 EX300-2 EX300-3 EX300-3C EX300-5 EX300-5HHE EX300LC-5M EX300LCLL-5 EX300LCLL-5M EX310H-3C EX345USR(LC) EX350H-5 EX350H-5HHE EX350K-5 EX370-5M EX370HD-5 EX370LL-5M EX385USR LX80RS-2 ZX330 ZX330-3G ZX330-5G

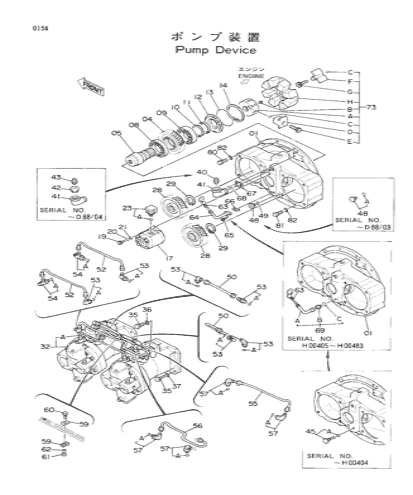

• Diagram parts list​

Pos.	Part No	Qty	Parts name	Comments
1	1010373	[1]	CASING;GEAR
1	1013618	[1]	CASING;GEAR
01-73.	9075748	[1]	PUMP;DOUBLE ASS'Y
4	3035852	[1]	GEAR;CENTER
5	3038090	[1]	SHAFT;CENTER
8	4023596	[1]	BRG.;BALL
9	4198787	[1]	BRG.;BALL
10	4191219	[1]	RING;RETAINING
11	4179833	[1]	SEAL;OIL
12	3033593	[1]	COVER;T.MISSION
13	4179834	[1]	O-RING
14	991733	[1]	RING;RETAINING
17	4181700	[1]	PUMP;GEAR
19	M341028	[2]	BOLT;SOCKET
20	984054	[2]	WASHER;SPRING
21	A590110	[2]	WASHER;PLANE
23	4191974	[1]	ADAPTER
23A.	4506418	[1]	O-RING
28	3035853	[2]	GEAR;DRIVE
29	991345	[2]	RING;RETAINING
32	9075749	[2]	PUMP;SINGLE
32A.	9075750	[1]	REGULATOR
35	M211645	[8]	BOLT
36	4126090	[4]	WASHER;SEAL
37	A590916	[4]	WASHER;SPRING
40	4234782	[1]	PLUG
41	94-0649	[1]	ELBOW
42	J728684	[1]	REDUCER	I 4234782
43	4511984	[1]	PLUG	I 4234782
45	4196389	[1]	GAUGE;LEVEL	T 4236198
45	4196389	[1]	GAUGE;LEVEL	T 4236328
45A.	4509180	[1]	O-RING
48	4092534	[1]	PLUG	T 4217653
48	4092534	[1]	PLUG	T 4509180
48	4217653	[1]	PLUG
48A.	4509180	[1]	O-RING
49	4509180	[1]	O-RING
50	4192946	[2]	PIPE
52	4192947	[2]	PIPE
53	4179837	[6]	FITTING;PIPE
53A.	957366	[1]	O-RING
54	4203485	[2]	FITTING;PIPE
54A.	957366	[1]	O-RING
55	3036249	[1]	PIPE
56	3036486	[1]	PIPE
57	4118499	[4]	FITTING;PIPE
57A.	957366	[1]	O-RING
59	4179843	[2]	CLAMP
60	J900828	[1]	BOLT
61	M500807	[1]	NUT
62	A590908	[1]	WASHER;SPRING
63	4236198	[1]	GAUGE;LEVEL
63	4242263	[1]	GAUGE;LEVEL
64	4242262	[1]	PIPE;GUIDE
65	M340816	[2]	BOLT;SOCKET
66	4243160	[1]	PACKING
67	3039521	[1]	NAME-PLATE
68	M492564	[2]	SCREW;DRIVE
69	4236328	[1]	PIPE;GUIDE ASS'Y
69A.	4236200	[1]	PIPE
69B.	4236199	[1]	ADAPTER
69C.	4509180	[1]	O-RING
73	4118705	[1]	COUPLING ASS'Y
73A.	4183171	[1]	HUB
73B.	4183170	[2]	SCREW;SET
73C.	4101345	[12]	PIN;SPRING
73D.	4183167	[4]	INSERT
73E.	4183169	[4]	BOLT;SOCKET
73F.	4183166	[4]	INSERT
73G.	4183168	[4]	BOLT;SOCKET
73H.	4183165	[1]	COUPLING
80	J901040	[3]	BOLT
81	J901035	[5]	BOLT
82	A590910	[8]	WASHER;SPRING

• More other gear parts fit HITACHI machinery​

3053098 GEAR;PLANETARY

EX300LCLL-5, EX300LCLL-5M, EX370LL-5M, EX400-3, EX400-3C, EX400-5, EX450H-5, ZX400L-5G, ZX400R-3, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX450H-HHE, ZX450LC-3-DH, ZX460LCH-AMS, ZX460LCH-HCME, ZX470-5G, ZX4...

8970944402 GEAR; CM/SHF

330C LC JD, 370C JD, CX650-2, LX130-7, LX160-7, SCX300-C, SCX400, SCX400T, SCX500-C, SCX500W, SCX550-C, SCX700, SCX700-2, ZX330, ZX330-3G, ZX330-5G, ZX330-HHE, ZX330LC-5G, ZX350-5G, ZX350H, ZX350H-3G,...

3039518 GEAR;SUN

EX270, EX300

1125231121 GEAR; IDLE

EX300-2, EX300-3, EX300-3HHE

1191211 GEAR;PLANETARY

ZX500W

1125233460 GEAR; IDLE

CD1500, CD2000, EX300-2, EX300-3, EX300-3C, EX300-3HHE, EX300-5, EX300-5HHE, EX300LCLL-5, EX310H-3C, EX345USR(LC), EX350H-5, EX350H-5HHE, EX350K-5, EX370-5M, EX370HD-5, EX370LL-5, EX385USR

3036261 GEAR;SUN

EX270, EX400

1131200590 GEAR; DRIVEN,OIL PUMP

CD1500, CD2000, EX300-2, EX300-3, EX300-3C, EX300-3HHE, EX300-5, EX300-5HHE, EX300LCLL-5, EX310H-3C, EX345USR(LC), EX350H-5, EX350H-5HHE, EX350K-5, EX370-5M, EX370HD-5, EX370LL-5, EX385USR

3036572 GEAR;PLANETARY

EX270, EX300
