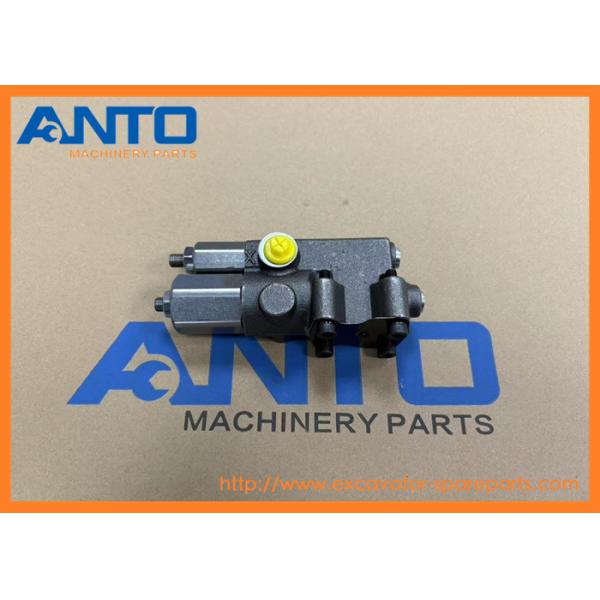

• 11998863 11708119 Control Valve Excavator Hydraulic Pump Parts For A30F/G A35D A40D ​

• Specifiion

Name	Control Valve
Parts No	11998863 11708119
Machine Model	A30F/G A35D A40D L110E L110F L120D
egory	Hydraulic Pump
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Function

It is likely that these control valves are turbo control valves. According to the relevant information of Volvo turbo control valves, they are electrical components that control the turbo wastegate through vacuum pressure and signals from the vehicle's electronic control module (ECM). The output of the ECM supplies the valve with a pulsating signal, and the duty cycle of the signal can be changed to control the pressure delivered to the wastegate servo, thereby calibrating the smooth boost output and adjusting the torque curve.

• Compatible models

HEAVY A25D A25E A25F A25F/G A30D A30E A30F A30F/G A35D A40D L110E L110F L120D L120E L120F L120GZ L150C L150D L180C L180D L330D L330E L40 L40B L45 L45B L50D L50E L60E L60F L60GZ L70B/L70C BM L70C L70D L70E L70F L90E L90F L90GZ V O L V O

• More other control valve parts fit for V O L V O machine

VOE11054692 Valve

A20C, A20C VOLVO BM, A25B, A25C, A25C VOLVO BM, A25D, A25E, A25F, A25F/G, A25G, A30 VOLVO BM, A30C, A30C VOLVO BM, A30D, A30E, A30F, A30F/G, A30G, A35, A35C, A35C VOLVO BM, A35D, A35E, A35E FS, A35F, ...

VOE11120866 Valve body

A25D, A25E, A30D, A30E

VOE17428948 Valve

A25F/G, A30F, A30F/G, A35F FS, A35F/G, A35F/G FS, A40F/G, A40F/G FS, A60H, ECR145E, ECR235E, L105, L110F, L110H, L120F, L120GZ, L120H, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L25...

VOE16271772 Valve

A25F, A25F/G, A30F, A30F/G, A35F, A35F FS, A35F/G, A35F/G FS, A40F, A40F FS, A40F/G, A40F/G FS, A60H, BL60B, BL61B, BL70B, BL71B, L110F, L110G, L110H, L120F, L120G, L120H, L150F, L150G, L150H, L180F, ...

VOE21990221 Valve stem seal

A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, FB...

VOE17444460 Valve

A25F/G, A25G, A30F/G, A30G

VOE17458850 Valve

L110F, L110G, L120F, L120G, L120H, L150G, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250G, L250H, L350F, L60F, L60G, L60H, L70F, L70G, L70H, L90F, L90G, L90H

VOE22326082 Valve bridge

A40F/G, A40F/G FS, A45G, A45G FS

VOE17444455 Valve

A25F/G, A25G, A30F/G, A30G

VOE8131835 Valve spring washer

A40F/G, A40F/G FS, A45G, A45G FS, A60H, EC700CHR, EC750D, EC750E, EC950E

VOE16890468 Valve body

A35G, A40G, A45G, A45G FS

VOE15702164 Valve kit

ECR25D

RM43910272 Valve

PF2181, PF4410

RM13339056 Valve

PF6110, PF6160/PF6170

RM70915038 Valve

ABG4361, ABG4371, PT220, PT220RH/PT240RH

VOE20511524 Valve

A35D, A40D, T450D

RM19312313 Valve

CR24/CR30

VOE15611621 Valve

EC18C, EC18D, EC20C, EC20D

RM13464648 Valve plate

DD112/DD118/DD120, DD132/DD138/DD140

RM20257986 Valve

PF2181, PF3172/PF3200

VOE12738503 Valve

G700B MODELS, G900 MODELS, G900B, G900C

RM13263694 Valve

DD112/DD118/DD120, DD120B, DD120C, DD132/DD138/DD140, DD140B, DD140C, SD100C, SD110, SD110C/SD110

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
	VOE11117047	[1]	Hydraulic pump
1		[1]	Housing
2	VOE11998853	[1]	Shaft
3	VOE11709639	[1]	Roller bearing
4	VOE11999321	[1]	Seal
5	VOE11704812	[1]	Snap ring
6	VOE11998856	[2]	Bearing
7	VOE11998869	[1]	Spring
8	VOE11708159	[1]	Yoke
9	VOE11998851	[1]	Pump element
10	VOE11708257	[1]	O-ring
11	VOE11998870	[1]	Thrust washer
12	VOE11992817	[1]	Roller bearing
13		[1]	Cover
14	VOE11998858	[1]	O-ring
15	VOE11709265	[4]	Allen Hd Screw
16	VOE15146225	[1]	Piston rod
17	VOE11703833	[1]	Piston
18	VOE11708083	[1]	Plug
19	VOE11708231	[1]	O-ring
20	VOE11704815	[1]	Plug
21	VOE11706189	[1]	Non-return valve
22	VOE11998863	[1]	Valve
23	VOE11708087	[3]	O-ring
24	VOE11992833	[1]	Plug
25	VOE13974079	[4]	Allen Hd Screw
	VOE17222767	[1]	Sealing kit

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
