- 3107859 Retainer Excavator Travel Motor Fitting For HITACHI FV30 ZX250L-5G ZX270-3
| Product name | Retainer |
| Part number | 3107859 |
| Model | FV30 ZX250L-5G ZX270-3 ZX270-HHE ZX280-5G ZX280LC-3 ZX280LC-3-HCME ZX280LC-5G ZX280LCH-3 ZX290L-5G ZX290LC-5B ZX290LCN-5B ZX330-3 ZX330-3-HCMC ZX330-3G ZX330-5G ZX330LC-5G |
| egory group | HITACHI Excavator Travel Motor |
| MOQ | 1 PCS |
| Warranty | 6 months |
| Payment term | T/T, Western Union, PAYPAL |
| Delivery time | 1-3 days after receiving the payment |
| Packing | As request or standard packing |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
1.Positioning and Fixing: It can be used to position and fix other components, ensuring their accurate position during operation and preventing displacement. For example, in a hydraulic pump, it may fix the position of gears or pistons to ensure the normal operation of the pump.
2.Isolating and Protecting: The retainer can isolate different components to prevent direct contact between them, reducing friction and wear. At the same time, it can also protect components from external impacts and damages. For instance, in a travel motor, it may isolate moving parts to avoid interference and damage between them.
HITACHI
FV30 ZX250L-5G ZX270-3 ZX270-HHE ZX280-5G ZX280LC-3 ZX280LC-3-HCME ZX280LC-5G ZX280LCH-3 ZX290L-5G ZX290LC-5B ZX290LCN-5B ZX330-3 ZX330-3-HCMC ZX330-3G ZX330-5G ZX330LC-5G

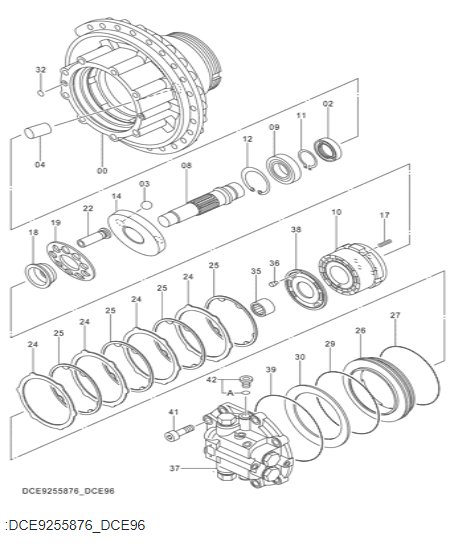

| Pos. | Part No | Qty | Parts name | Comments |
| | 9255876 | [1] | MOTOR;OIL | I 9251292 (for assembly of machine) |
| | 9251292 | [1] | MOTOR;OIL | (for transportation) |
| 0 | 4501 | [1] | HOUSING | |
| 2 | 4396696 | [1] | SEAL;OIL | |
| 3 | 4355728 | [2] | BALL | |
| 4 | 4706126 | [1] | PISTON;SERVO | |
| 8 | 2047884 | [1] | SHAFT | |
| 9 | 4396755 | [1] | BRG.;ROL. | |
| 10 | 2053333 | [1] | ROTOR | |
| 11 | 991345 | [1] | RING;RETAINING | |
| 12 | 959501 | [1] | RING;RETAINING | |
| 14 | 3106087 | [1] | PLATE;SWASH | |
| 17 | 4468258 | [6] | SPRING;COMPRES. | |
| 18 | 4642740 | [1] | BUSHING | |
| 19 | 3107859 | [1] | RETAINER | |
| 22 | 8107650 | [9] | PISTON | |
| 24 | 3094376 | [4] | PLATE | |
| 25 | 3107797 | [4] | PLATE;FRICTION | |
| 26 | 3094377 | [1] | PISTON | |
| 27 | 4468248 | [1] | O-RING | |
| 29 | 4468249 | [1] | O-RING | |
| 30 | 4468250 | [1] | SPRING;DISC | |
| 32 | 4506415 | [2] | O-RING | |
| 35 | 4472355 | [1] | BRG.;NEEDLE | |
| 36 | 4461910 | [1] | PIN;KNOCK | |
| 37 | 9263062 | [1] | VALVE;BRAKE | I 9264565 (for assembly of machine) |
| 37 | 9264565 | [1] | VALVE;BRAKE | (for transportation |
| 38 | 3103258 | [1] | PLATE;VALVE | |
| 39 | 4468244 | [1] | O-RING | |
| 41 | M342056 | [8] | BOLT;SOCKET | |
| 42 | 9134112 | [1] | PLUG | |
| 42A. | 4506418 | [1] | O-RING | |
- More other retainer parts fit HITACHI machinery
| 4662356 RETAINER |
| MA200, PZX450-HCME, ZX110-3, ZX110-3-AMS, ZX110-3-HCME, ZX110M-3, ZX110M-3-HCME, ZX120-3, ZX130-3, ZX130K-3, ZX130LCN-3F-AMS, ZX130LCN-3FHCME, ZX135US-3, ZX135US-3-HCME, ZX135US-3F-AMS, ZX135US-3F-HCM... |
| |
| 0322304 RETAINER |
| EX100W, EX100WD, EX100WD-3, EX100WD-3C, EX125WD-5, EX1800, EX1800-3, EX1900-5, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 J... |
| |
| 0481006 RETAINER |
| EX30UR, EX30UR-2, EX30UR-2C, EX35U, EX35UNA, FV30, ZX35U |
| |
| 1811180600 RETAINER; PINION STARTER |
| 135C RTS JD, 225CL RTS JD, 270C LC JD, HU230-A, HX220B-2, LX110-7, MA200-G, TX160, UCX300, ZR130HC, ZR420JC, ZR900TS, ZX110, ZX110-AMS, ZX110-E, ZX110-HCME, ZX110M, ZX110M-HCME, ZX120, ZX120-E, ZX120-... |
| |
| 3103750 RETAINER |
| ZX270-3, ZX280LC-3, ZX280LC-3-HCME, ZX280LCH-3, ZX330-3, ZX350-3-AMS, ZX350H-3, ZX350K-3, ZX350LC-3-HCME |
| |
| 0816208 RETAINER |
| 218HSL, SCX900-2, UCX300, ZR420JC, ZR950JC, ZX270, ZX270-3, ZX270-HHE, ZX280-5G, ZX280LC-3, ZX280LC-3-HCME, ZX280LC-5G, ZX280LC-AMS, ZX280LC-HCME, ZX280LCH-3, ZX290LC-5B, ZX290LCN-5B, ZX300W, ZX330, Z... |
| |
| 0820415 RETAINER |
| EH3500AC2, EH4000AC2, EX1900-5, EX1900-6, EX3600-5, EX3600-6, EX3600E-6, EX8000-6, FV30, ZR260HC, ZX450, ZX450-3, ZX450-3F, ZX450H, ZX450H-HHE, ZX450LC-3-DH, ZX460LCH-AMS, ZX460LCH-HCME, ZX470-5G, ZX4... |
| |
| 0982102 RETAINER |
| ZX120-3, ZX200, ZX200-3, ZX240-3, ZX330, ZX330-3 |
| |
| YA00013459 RETAINER |
| ZX250LC-5B, ZX250LCN-5B, ZX290LC-5B, ZX290LCN-5B, ZX350LC-5B, ZX350LCN-5B, ZX470LC-5B, ZX470LCH-5B |
