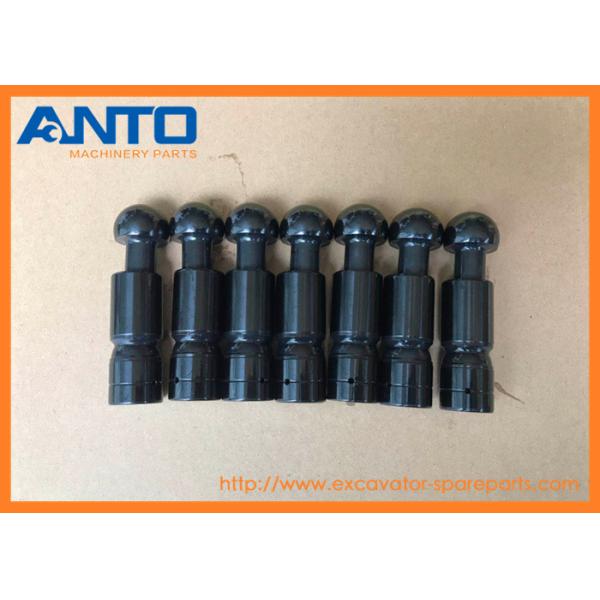

8059452 Piston Excavator Hydraulic Pump Fitting For HITACHI CHR70 EX125WD-5 EX200-5

• 8059452 Piston Excavator Hydraulic Pump Fitting For HITACHI CHR70 EX125WD-5 EX200-5

• Specifiion

Product name	Piston
Part number	8059452
Model	CHR70 EX125WD-5 EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE EX270-5 EX280H-5 HR1200SG HR1200SGM HU230-A IZX200
egory group	HITACHI Excavator Hydraulic Pump
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

• Function

1.Pressure transmission and conversion: The piston bears the pressure generated by the hydraulic oil and converts this pressure into mechanical force. This force is transmitted to other components of the hydraulic system through the piston rod or other connecting parts, enabling the movement and operation of construction machinery, such as the lifting, swinging, and digging actions of excavators.

2.Ensuring system stability and efficiency: The precise movement and reliable sealing of the piston are crucial for the stable operation and efficiency of the hydraulic system. A high - quality piston can reduce hydraulic oil leakage, ensure the stability of oil pressure, and improve the overall efficiency of the hydraulic system, thereby enhancing the working performance and reliability of construction machinery.

• Compatible models

HITACHI

CHR70 EX125WD-5 EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE EX270-5 EX280H-5 HR1200SG HR1200SGM HU230-A IZX200

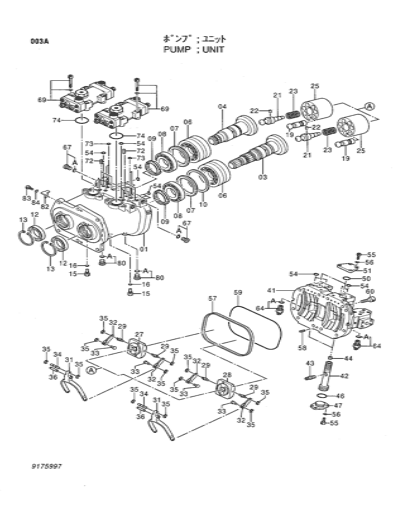

• Diagram parts list​

Pos.	Part No	Qty	Parts name	Comments
	+++++++	[1]	PUMP;UNIT	9175997
1	1020327	[1]	CASING;PUMP
3	2036807	[1]	DISC;DRIVING
4	2036808	[1]	DISC;DRIVING
6	4337419	[2]	BRG.;ROL.
7	4348182	[2]	RING
8	4337483	[2]	BRG.;ROL.
9	4178173	[2]	NUT;BRG.
10	4338907	[1]	RING;THRUST
12	4333170	[2]	SEAL;OIL
13	4116290	[2]	RING;RETAINING
15	4233165	[2]	PLUG
16	957366	[2]	O-RING
19	8059452	[14]	PISTON
21	4337035	[2]	SHAFT;CENTER
22	4198956	[2]	PIN
23	4179181	[2]	SPRING;COMPRES.
25	2036744	[2]	ROTOR
27	2036795	[1]	VALVE
28	2036786	[1]	VALVE
29	4179179	[4]	PIN
31	3075674	[2]	LINK;E
32	9724756	[4]	LEVER
33	4179177	[4]	PIN
34	4179176	[2]	PIN
35	4146370	[12]	RING;RETAINING
36	4200227	[2]	PIN
41	1020623	[1]	HEAD
42	3069541	[2]	PISTON;SERVO
43	4338053	[2]	PIN
44	4337812	[2]	SCREW;SET
46	4355085	[2]	O-RING
47	4338060	[2]	STOPPER
50	4355083	[2]	O-RING
51	4338061	[2]	STOPPER
54	4180349	[20]	O-RING
55	M340825	[16]	BOLT;SOCKET
56	4514388	[16]	WASHER;SPRING
57	3070581	[1]	RING;BACKUP
58	4099290	[2]	PIN;SPRING
59	4342840	[1]	O-RING
60	M341245	[12]	BOLT;SOCKET
64	4355012	[2]	SENSOR;PRES.	Y 4436271
64	4436271	[2]	SENSOR;PRES.
64A.	4365826	[1]	O-RING
67	9134110	[2]	PLUG
67A.	957366	[1]	O-RING
69	9175998	[2]	REGULATOR	I 9185951 9175998<BR>&lt;for assembly of machine&gt;
69	-9185951	[2]	REGULATOR	&lt;for transportation&gt;
72	4515041	[4]	PIN;SPRING
73	4343074	[4]	O-RING
74	4348665	[2]	O-RING
80	9134111	[2]	PLUG
80A.	4509180	[1]	O-RING
82	4252767	[1]	BRACKET
83	M340613	[1]	BOLT;SOCKET
84	4169516	[1]	WASHER;SPRING

• More other piston parts fit HITACHI machinery​

4416040 PISTON;SERVO

CHR70, EX100-5, EX100-5 JPN, EX100M-5, EX120-5 JPN, EX120-5HG, EX120-5LV JPN, EX120-5X, EX120-5Z, EX120SS-5, EX130H-5 JPN, EX130K-5, EX135UR, EX135UR-5, EX135US-5, EX135USR, EX135USRK, EX140US-5

0651702 PISTON

EX12-2, EX15-2, EX17U, EX17UNA, EX18-2, ZR130HC, ZR260HC, ZR950JC, ZX10U-2, ZX14-3, ZX14-3CKD

8973585740 PISTON

135C RTS JD, 225CL RTS JD, 270C LC JD, HU230-A, HX220B-2, LX110-7, LX70-7, LX80-7, MA200-G, TX160, UCX300, ZR130HC, ZR420JC, ZR900TS, ZX110, ZX110-AMS, ZX110-E, ZX110-HCME, ZX110M, ZX110M-HCME, ZX120,...

8092512 PISTON

218HSL, SCX1200-2, SCX1500-2, SCX700-2, SCX800-2, SCX800HD-2, SCX900-2, ZX270, ZX280LC-AMS, ZX280LC-HCME, ZX330, ZX350H, ZX350K, ZX350LC-AMS, ZX350LC-HCME, ZX370MTH

0836110 PISTON

ZX200, ZX200-3G, ZX200-E, ZX210-AMS, ZX210-HCME, ZX210H, ZX210H-3G, ZX210K, ZX210K-3G, ZX210LC-3G, ZX210N-AMS, ZX210N-HCME, ZX225USR, ZX225USR-E, ZX225USR-HCME, ZX225USRK, ZX240-AMS, ZX240-HCME

4617862 PISTON

ZR420JC

1191610210 PISTON; AIR CMPR

EX125WD-5, ZX125W

1150906 PISTON

EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

0973404 PISTON

ZX200, ZX225USR

0982908 PISTON

ZX200, ZX200-3, ZX240-3, ZX330, ZX330-3

4617847 PISTON

ZR420JC

0966905 PISTON

EX200-5 JPN, ZX200, ZX225USR

7060544 PISTON

ZX250L-5G, ZX280-5G, ZX280LC-5G, ZX290L-5G, ZX290LC-5B, ZX290LCN-5B, ZX330-5G, ZX330LC-5G, ZX350H-5G, ZX350K-5G, ZX350LC-5B, ZX350LCH-5G, ZX350LCK-5G, ZX350LCN-5B

4647798 PISTON

ZX140W-3, ZX140W-3-AMS, ZX140W-3DARUMA, ZX145W-3, ZX145W-3-AMS, ZX170W-3, ZX170W-3-AMS, ZX170W-3DARUMA, ZX190W-3, ZX190W-3-AMS, ZX190W-3DARUMA, ZX210W-3, ZX210W-3-AMS, ZX210W-3-HCMC, ZX210W-3DARUMA, Z...

4462038 PISTON

FV30, ZX270, ZX270-3, ZX270-HHE, ZX280-5G, ZX280LC-3, ZX280LC-3-HCME, ZX280LC-5G, ZX280LC-AMS, ZX280LC-HCME, ZX280LCH-3, ZX290LC-5B, ZX290LCN-5B, ZX330, ZX330-3, ZX330-3-HCMC, ZX330-3G, ZX330-5G, ZX33...

4462038 PISTON

FV30, ZX270, ZX270-3, ZX270-HHE, ZX280-5G, ZX280LC-3, ZX280LC-3-HCME, ZX280LC-5G, ZX280LC-AMS, ZX280LC-HCME, ZX280LCH-3, ZX290LC-5B, ZX290LCN-5B, ZX330, ZX330-3, ZX330-3-HCMC, ZX330-3G, ZX330-5G, ZX33...

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
