- VOE15073261 15073261 Air A/C Blower Fan Motor KOMATSU Dump Truck Spare Parts For L90F L90G L120G
| Name | Air A/C Blower Fan Motor |
| Parts No | VOE15073261 15073261 |
| Machine Model | L90F L90G L120G L150G L180G |
| egory | Fresh Air Inlet, Air Filter And Fan Housing |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
This motor drives the blower fan, which circulates air through the HVAC system. It pushes conditioned air (cooled by the air conditioning or heated by the heater core) into the cabin, maintaining comfortable temperature levels for the operator. By controlling fan speed, it adjusts airflow intensity to suit ambient conditions and operator preferences, ensuring a productive working environment even in extreme temperatures.
L90F L90G L120G L150G L180G Vo.lvo.
- More other motor parts fit for V O L V Omachine
| VOE14545480 Fan shroud |
| EC240B, EC240C, EC290B, EC290C, FC2924C, FC3329C |
| |
| VOE4947359 Fan Shroud |
| 4200B, L50 |
| |
| VOE4948620 Fan ring |
| 4200B, L50 |
| |
| VOE11033358 Fan |
| 6300 |
| |
| RM43856525 Fan shroud |
| DD132/DD138/DD140 |
| |
| RM43856459 Fan guard |
| DD112/DD118/DD120, DD132/DD138/DD140 |
| |
| VOE11435752 Fan Shroud |
| L150E, L150F, L180E, L180F, L180F HL, L220E, L220F |
| |
| VOE14614051 Fan Shroud |
| EC480D, EC480DHR, PL4809D |
| |
| VOE14624857 Fan shroud |
| EC340D, EC380D, EC380DHR, EC480D, EC480DHR |
| |
| VOE14602258 Fan shroud |
| EC240B, EC290B |
| |
| ZM2904223 Fan Shroud |
| ZL502C |
| |
| VOE4804754 Fan Protector |
| 4200B, L50 |

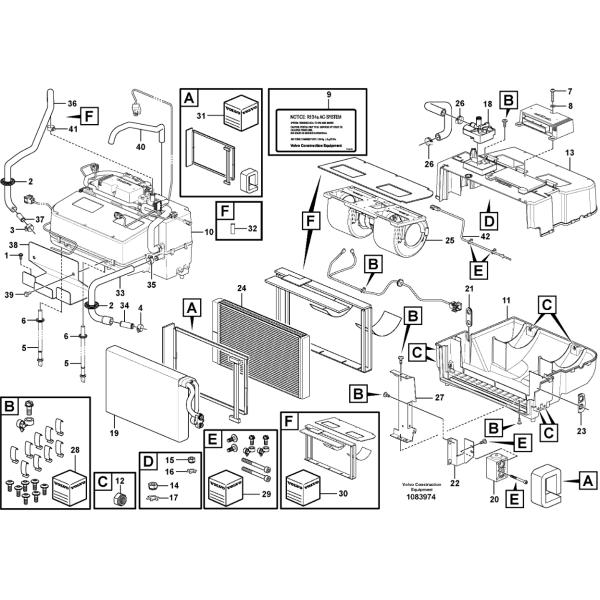

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE13981208 | [2] | Screw | |
| 2 | VOE13961962 | [2] | Protecting bushing | |
| 3 | VOE13943472 | [1] | Hose clamp | |
| 4 | VOE13943474 | [1] | Hose clamp | |
| 5 | VOE15185489 | [2] | Hose kit | |
| 6 | VOE961970 | [2] | Plug | |
| 7 | VOE969587 | [1] | Six point socket screw | |
| 8 | VOE955892 | [1] | Plain washer | |
| 9 | VOE11444125 | [1] | Decal | 31715 S/N 1257- |
| 10 | VOE16229310 | [1] | Climate unit | |
| 11 | VOE15073116 | [1] | Housing | |
| 12 | VOE15073819 | [6] | Nut | |
| 13 | VOE16688296 | [1] | Housing | |
| 14 | VOE15073815 | [4] | Nut | |
| 15 | VOE15073817 | [1] | Nut | |
| 16 | VOE15073822 | [1] | Washer | |
| 17 | VOE15073820 | [4] | Washer | |
| 18 | VOE15054424 | [1] | Valve | |
| 19 | VOE16688256 | [1] | Evaporator system | |
| 19 | VOE20443758 | [1] | O-ring | UPPER |
| 19 | VOE20443755 | [1] | O-ring | LOWER |
| 20 | VOE16271772 | [1] | Valve | |
| 21 | VOE15075803 | [1] | Grommet | |
| 22 | VOE15075808 | [1] | Bracket | |
| 23 | VOE15075805 | [1] | Grommet | |
| 24 | VOE17228562 | [1] | Heater unit | |
| 25 | VOE15073261 | [1] | Fan | |
| 26 | VOE13943472 | [0002] | Hose clamp | |
| 26 | VOE13946652 | | Hose | |
| 27 | VOE15075807 | [1] | Retainer | |
| 28 | VOE15076813 | [1] | Spare parts kit | |
| 29 | VOE15073805 | [1] | Spare parts kit | |
| 30 | VOE15073801 | [1] | Spare parts kit | |
| 31 | VOE15074185 | [1] | Spare parts kit | |
| 32 | VOE17414915 | [0001] | Support sleeve | |
| 33 | VOE17410366 | [1] | Hose | |
| 34 | VOE11006631 | [1] | Tube | |
| 35 | VOE13943472 | [1] | Hose clamp | |
| 36 | VOE17410388 | [1] | Hose | |
| 37 | VOE11006632 | [1] | Tube | |
| 38 | VOE15111485 | [1] | Plate | |
| 39 | VOE946440 | [2] | Flange screw | |
| 40 | VOE13961191 | [1] | Hydraulic hose | |
| 41 | VOE992082 | [1] | Hose clamp | |
| | VOE17231567 | [1] | Kit | |
