• 222-4086 2224086 Harness Excavator Engine Parts Fitting For 140H 143H 14H 160H

• Specifiion

Appliion	C A T Excavator Engine Parts
Name	Harness
Parts No	222-4086 2224086
Model	140H 143H 14H 160H 163H 16H
Delivery time	Stock for urgent delivery
Quality	Brand new, OEM quality
MOQ	1 PCS
Design	made in china
Means of transport	By sea/air, DHL FEDEX UPS TNT Express
Packing	As request or standard packing

• Function

1. Connecting Engine Components
It links critical parts like the engine control module (ECM), fuel injectors, ignition coils, glow plugs, temperature sensors, and speed sensors. By providing a dedied electrical pathway for each component, it prevents interference and ensures accurate operation.

2. Power and Signal Distribution
The harness manages the flow of both high-current power and low-voltage control signals. High-power circuits supply energy to components like the starter motor and alternator, while signal wires transmit data from sensors to the ECM for real-time monitoring and control. This separation of power and signal lines enhances system stability and reduces the risk of electrical noise.

3. Protection Against Environment and Vibration
Constructed with durable, heat-resistant insulation and abrasion-resistant sheathing, it withstands the harsh conditions of the engine bay, including high temperatures (up to 150°C), moisture, and vibration. The harness is designed to prevent wire damage and short circuits, ensuring long-term reliability.

• Applicable models

• More harness parts supplied to C A T machine

1212844 HARNESS ASSEMBLY-CRANK

561N, 572R II, 583T, 587T, 953C, 963C, 973C, D10R, D10T, D11N, D11R, D5N, D6K2, D6K2 LGP, D6N, D6N LGP, D6N OEM, D6R, D6R II, D6R III, D6R STD, D6T, D7E, D7R II, D7R XR, D8R, D8R II, D8T, D9R, D9T, PL...

2269665 HARNESS ASSEMBLY-RH CONSOLE

572R II, D6R III, D6T, D7R II

2102509 HARNESS AS-TRANSMISSION

572R II, D6R II, D7R II, D8R II

3120269 HARNESS AS-PLATFORM

572R II, D6R II, D7R II, D8R II

2220355 HARNESS AS

14H, 16H

1876269 HARNESS AS-MONITOR

14H, 16H

2056551 HARNESS AS-REAR CHASSIS

16H

2528021 HARNESS AS-TRANSMISSION

16H

2063733 HARNESS AS-REAR

16H

2314529 HARNESS AS

16H

1509869 HARNESS AS

120H, 12H, 140H

1693283 HARNESS AS-CONSOLE

120H, 12H, 140H

3989259 HARNESS AS-ENGINE

3512B, 3512C

3989397 HARNESS AS-LIGHTING

834K, 988K

3923496 HARNESS AS-SENSOR

730C

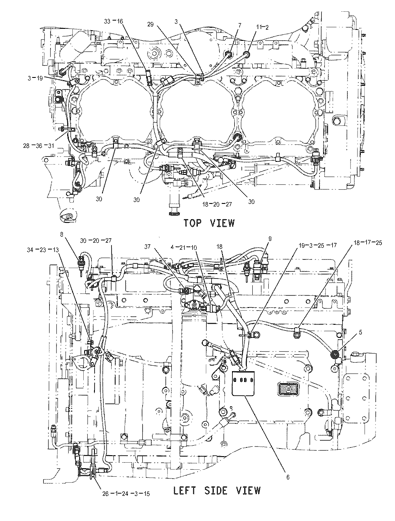

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
1	2M-7077	[1]	SPACER (0.406X0.62X0.37-IN THK)
2	3E-7448	[1]	CONNECTOR
3	3S-2093 C	[6]	STRAP-CABLE
4	9X-0262	[1]	ADAPTER
5	161-1705 C	[1]	SENSOR AS-PRESSURE (ENGINE OIL)
6	222-4086	[1]	HARNESS AS (ENGINE ELECTRONIC)
	155-2255	[1]	KIT-CONNECTING PLUG (12-PIN)
			(INCLUDES PLUG AS & WEDGE)
	155-2260	[3]	KIT-CONNECTING PLUG (3-PIN)
			(INCLUDES PLUG AS & WEDGE)
	155-2270	[7]	KIT-CONNECTING PLUG (2-PIN)
			(INCLUDES PLUG AS & WEDGE)
	102-8802	[1]	KIT-RECEPTACLE (2-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	102-8803	[1]	KIT-RECEPTACLE (3-PIN)
			(INCLUDES RECEPTACLE AS & WEDGE)
	160-7690	[1]	PLUG AS-CONNECTOR (70-PIN)
	159-9322	[1]	SEAL-O-RING
	3S-2093	[2]	STRAP-CABLE
7	197-8391 CY	[1]	SENSOR GP-TEMPERATURE (INLET MANIFOLD)
8	197-8392 CY	[1]	SENSOR GP-TEMPERATURE (WATER COOLANT)
9	197-8393 CY	[1]	SENSOR GP-PRESSURE (ATMOSPHERIC)
10	197-8394 CY	[1]	SENSOR GP-PRESSURE (FUEL)
11	197-8395 CY	[1]	SENSOR GP-PRESSURE (INLET MANIFOLD)
12	197-8396 CY	[1]	SENSOR GP-SPEED (CRANKSHAFT)
13	197-8397 CY	[1]	SENSOR GP-SPEED (CAMSHAFT)
14	4P-5918	[1]	CLIP
15	132-5789	[1]	CLIP (LADDER)
16	102-8802	[1]	KIT-RECEPTACLE (2-PIN)(AIR INLET HEATER)
17	3E-4353 C	[2]	WASHER-HARD (11X25X3-MM THK)
18	4K-8864 C	[3]	CLIP (LOOP)
19	4P-8134	[3]	CLIP (LADDER)
20	5P-4115	[2]	WASHER-HARD (7.2X19X2-MM THK)
21	6V-5048 C	[1]	SEAL-O-RING
22	6V-5049 C	[1]	SEAL-O-RING
23	6V-5215 M	[2]	BOLT (M8X1.25X16-MM)
24	6V-5839	[1]	WASHER (11X21X2.5-MM THK)
25	6V-6317 CM	[2]	BOLT (M10X1.5X20-MM)
26	6V-7981 M	[1]	BOLT (M10X1.5X70-MM)
27	6V-8214 M	[2]	BOLT (M6X1X20-MM)
28	6V-8837 M	[1]	BOLT (M6X1X16-MM)
29	8J-1256	[1]	CLIP (LOOP)
30	8M-2770 C	[4]	CLIP (LOOP)
31	8M-2771	[1]	CLIP
32	8T-0642 M	[1]	BOLT (M8X1.25X14-MM)
33	8T-8737	[2]	PLUG-SEAL
34	9M-1974	[2]	WASHER-HARD (8.8X16X2-MM THK)
35	9S-4191	[1]	PLUG (9/16-18-THD)
36	9X-8267	[1]	WASHER (6.6X12X2-MM THK)
37	197-8391 CY	[1]	SENSOR GP-TEMPERATURE (FUEL)
	C		CHANGE FROM PREVIOUS TYPE
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
