• 154-33-21420 154-27-11420 1543321420 Lock KOMATSU Bulldozer Parts Fit For D135A D150A D155A

• Specifiion

Appliion	Excavator Bulldozer
Name	Lock
Parts No	154-33-21420 154-27-11420 1543321420
Machine Model	D135A D150A D155A D155C D155S D155W D80A D80E D80P D85A D85C D85E D85P D95S
egory	plate lock
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

BULLDOZERS D135A D150A D155A D155S D155W D80A D80E D80P D85A D85E D85P
CRAWLER LOADERS D95S
PIPELAYERS D155C D85C Komatsu

• More other lock fit for machine

154-33-11620 PLATE,LOCK

D135A, D150A, D155A, D155C, D155S, D155W, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S

195-98-23370 PLATE, OPERATING,(SLING POINT)

D135A, D150A, D155A, D155AX, D155C, D355A, D355C

154-98-14630 PLATE, MARK

D135A, D275A, D375A, D575A, D85A, D85E, D85P

154-98-35510 PLATE,FUSE

D135A, D85A, D85E, D85P

09654-03000 PLATE, SAFETY

D135A, D150A, D155A, D155S, D20A, D20P, D20PL, D20PLL, D20Q, D20S, D21A, D21E, D21P, D21PL, D21Q, D21S, D275A, D31A, D31E, D31P, D31PL, D31PLL, D31Q, D31S, D355A, D375A, D40A, D41A, D41E, D41P, D41Q

175-900-2350 PLATE, CAUTION,TRAVELING ON SLOPE

D135A, D150A, D155A, D155C, D155S, D275A, D355A, D355C, D375A, D455A, D475A, D575A, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S

175-15-42340 PLATE

D135A, D155A, D155C, D155S, D155W, D355C, D85A, D85E, D85P, D95S, WF22A, WF22T

175-22-21131 PLATE

D135A, D150A, D155A, D155C, D155S, D155W, D455A, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S

175-22-21160 PLATE

D135A, D150A, D155A, D155C, D155S, D155W, D455A, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S

175-27-31550 PLATE

D135A, D150A, D155A, D155C, D155W

154-27-11410 PLATE

D135A, D80A, D80E, D80P, D85A, D85C, D85E, D85P

154-33-21430 PLATE,LOCK

D135A, D150A, D155A, D155C, D155S, D155W, D80A, D80E, D80P, D85A, D85C, D85E, D85P, D95S

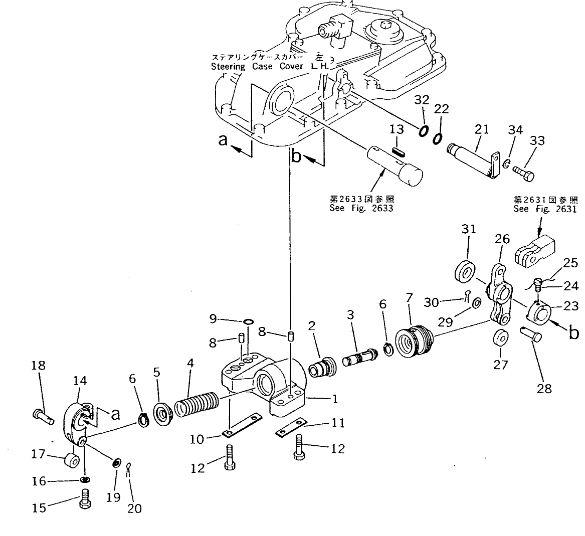

• alog parts list

Pos.	Part No	Qty	Parts name	Comments
1	154-33-31130	[1]	BODY,L.H. Komatsu	5.7 kg.
			["SN: 10001-UP"]
1	154-33-31140	[1]	BODY,R.H. Komatsu	5.7 kg.
			["SN: 10001-UP"]
2	195-33-14341	[2]	BUSHING Komatsu China
			["SN: 10001-UP"]
3	154-33-31180	[2]	SPOOL Komatsu China
			["SN: 10001-UP"]
4	170-33-13370	[2]	SPRING Komatsu	0.135 kg.
			["SN: 10001-UP"]
5	175-33-31310	[2]	RETAINER Komatsu	0.08 kg.
			["SN: 10001-UP"]
6	04064-02512	[4]	RING Komatsu	0.002 kg.
			["SN: 10001-UP"]
7	154-33-31150	[2]	PISTON Komatsu	1.6 kg.
			["SN: 10001-UP"]
8	04020-01228	[4]	PIN,DOWEL Komatsu	0.026 kg.
			["SN: 10001-UP"] analogs:["21T3016190"]
9	07000-02018	[4]	O-RING Komatsu China	0.001 kg.
			["SN: 10001-UP"] analogs:["0700012018", "KB9511301800", "YM24311000180", "2083811590"]
10	154-33-21420	[2]	PLATE,LOCK Komatsu China
			["SN: 10001-UP"] analogs:["1542711420"]
11	154-33-21430	[2]	PLATE,LOCK Komatsu	0.045 kg.
			["SN: 10001-UP"]
12	01010-51255	[8]	BOLT Komatsu	0.065 kg.
			["SN: 10001-UP"] analogs:["0101081255", "3007572X", "801014128"]
13	04000-01030	[2]	KEY Komatsu China
			["SN: 10001-UP"]
14	154-33-21150	[2]	LEVER Komatsu China
			["SN: 10001-UP"]
15	01010-51240	[2]	BOLT Komatsu	0.052 kg.
			["SN: 10001-UP"] analogs:["0101081240", "801015573"]
16	01602-21236	[2]	WASHER,SPRING Komatsu	0.006 kg.
			["SN: 10001-UP"] analogs:["M011601200006", "0160211236"]
17	170-33-13330	[2]	ROLLER Komatsu China
			["SN: 10001-UP"]
18	04205-11645	[2]	PIN Komatsu China
			["SN: 10001-UP"] analogs:["0420501645"]
19	01641-21626	[2]	WASHER Komatsu	0.01 kg.
			["SN: 10001-UP"] analogs:["0164101626"]
20	04050-14025	[2]	PIN Komatsu	0.003 kg.
			["SN: 10001-UP"] analogs:["0405004025"]
21	154-33-21262	[2]	SHAFT Komatsu China
			["SN: 10001-UP"] analogs:["1543321260", "1543321261"]
22	07000-03030	[2]	O-RING Komatsu OEM	0.001 kg.
			["SN: 10001-UP"]
23	154-33-21270	[2]	SPACER Komatsu China
			["SN: 10001-UP"]
24	01306-00616	[2]	SCREW Komatsu China
			["SN: 10001-UP"] analogs:["0130610616", "38510194491"]
25	04059-01020	[2]	WIRE,LOCK Komatsu	0.002 kg.
			["SN: 10001-UP"] analogs:["0405901025", "0405901012", "0405901080"]
26	154-33-21161	[2]	LEVER Komatsu China
			["SN: 10001-UP"]
31	154-33-21280	[2]	SPACER Komatsu China
			["SN: 10001-UP"]
32	07000-03025	[2]	O-RING Komatsu China	0.001 kg.
			["SN: 10001-UP"] analogs:["0700013025"]
33	01010-51025	[2]	BOLT Komatsu	0.36 kg.
			["SN: 10001-UP"] analogs:["0101081025", "0101651025", "801015109"]
34	01602-21030	[2]	WASHER,SPRING Komatsu	0.004 kg.
			["SN: 10001-UP"] analogs:["YM22217100000"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
