- 6262-71-1100 6262711100 Fuel Pump Excavator Engine Parts Fit For KOMATSU WA500
| egory | KOMATSU excavator engine parts |
| Name | Fuel pump |
| Parts No | 6262-71-1100 6262711100 |
| Machine Model | WA500 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
1. Fuel supply
Continuous delivery: The primary function of the fuel pump assembly is to continuously supply fuel from the fuel tank to the engine's fuel injection system. It ensures that the engine receives a sufficient amount of fuel at all times during operation, whether the engine is idling, under normal load, or operating at full - power. For example, during heavy - duty operations of Komatsu construction machinery equipped with this fuel pump, such as an excavator digging in a tough terrain, the pump needs to provide a stable fuel flow to meet the high - power demand of the engine.
Maintaining pressure: It builds and maintains the appropriate fuel pressure in the fuel delivery lines. In diesel engines, the fuel injection system requires high - pressure fuel to atomize the fuel properly for efficient combustion. The fuel pump assembly ensures that the fuel reaches the injectors at the required pressure level, typically in the range of several hundred to several thousand pounds per square inch (psi), depending on the engine design.
WHEEL LOADERS WA500
- More pump parts fit for KOMATSU machinery
| 8242-70-5D80 PUMP |
| BR350JG |
| |
| 711-73-11120 PUMP |
| WD600 |
| |
| 234-60-72100 PUMP ASS'Y |
| GD705A |
| |
| R6162731572 PUMP FUEL INJ |
| REMANBK |
| |
| R6128711122 PUMP FUEL INJ |
| REMANBK |
| |
| 705-14-38531 PUMP ASS'Y |
| HD465 |
| |
| R6742015577 PUMP WATER |
| REMANBK |
| |
| 705-36-29340 PUMP ASS'Y,(SAR28) |
| WA450 |
| |
| MT-272540A PUMP HOUSING ASS'Y |
| PC2000, TRAVEL |
| |
| DK106068-2810 PUMP ASS'Y |
| SA6D170 |
| |
| 708-1S-01253 PUMP |
| PC27MR, PC30MR |
| |
| 8232-60-1330 PUMP,FRONT |
| BR310JG |

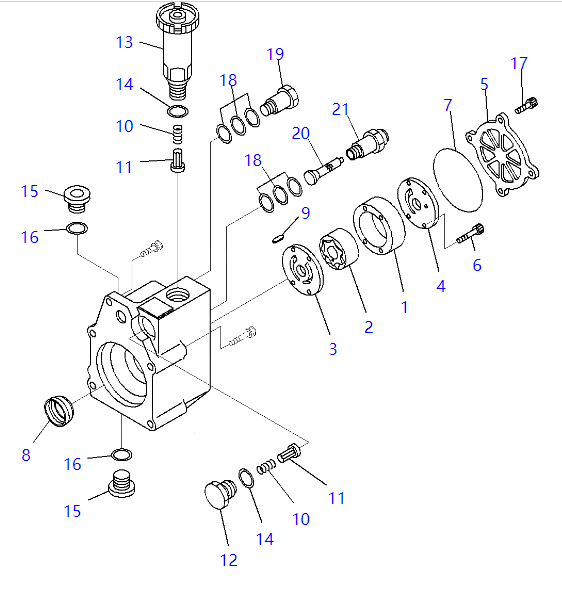

| Pos. | Part No | Qty | Parts name | Comments |
| | 6262-71-1100 | [1] | Pump Assembly, Supply Komatsu China | |
| | ["SN: 730016-UP"] |$0. |
| | 6262-71-1110 | [1] | Pump Komatsu China | |
| | ["SN: 730016-UP"] analogs:["R6262711110"] |$1. |
| 1 | ND094231-0060 | [1] | Case Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 2 | ND094230-0080 | [1] | Pump Subassembly Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 3 | ND094241-0040 | [1] | Plate Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 4 | ND094244-0040 | [1] | Plate Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 5 | ND094251-0050 | [1] | Cover Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 6 | ND094082-0040 | [4] | Screw Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 7 | ND094086-0200 | [1] | O-ring Komatsu | 0.005 kg. |
| | ["SN: 730016-UP", "SCC: C2"] |
| 8 | ND094087-0050 | [1] | Seal, Oil Komatsu | 0.009 kg. |
| | ["SN: 730016-UP", "SCC: C2"] |
| 9 | ND094205-0060 | [1] | Key Komatsu | 0.005 kg. |
| | ["SN: 730016-UP", "SCC: C2"] |
| 10 | ND092124-0010 | [2] | Spring, Check Valve Komatsu | 0.004 kg. |
| | ["SN: 730016-UP"] |
| 11 | ND092121-0011 | [2] | Valve, Check Komatsu | 0.015 kg. |
| | ["SN: 730016-UP"] analogs:["ND0921210010"] |
| 12 | ND092126-0010 | [1] | Plug, Chamber Komatsu | 0.025 kg. |
| | ["SN: 730016-UP", "SCC: C2"] |
| 13 | ND092130-0360 | [1] | Pump, Fuel Priming Komatsu | 0.09 kg. |
| | ["SN: 730016-UP"] |
| 14 | ND092125-0010 | [2] | Gasket Komatsu | 0.014 kg. |
| | ["SN: 730016-UP"] |
| 15 | ND090317-0060 | [2] | Plug, Screw Komatsu China | |
| | ["SN: 730016-UP", "SCC: C2"] |
| 16 | ND949018-1500 | [2] | Washer, T=1.0mm Komatsu | 0.001 kg. |
| | ["SN: 730016-UP", "SCC: C2"] |
| 17 | ND949044-3320 | [4] | Bolt Komatsu | 0.006 kg. |
| | ["SN: 730016-UP", "SCC: C2"] |
| 17 | ND094040-0530 | [1] | Overhaul Kit Komatsu China | |
| | ["SN: 730016-UP"] |
| 18 | ND090222-0070 | [6] | Washer Komatsu | 0.003 kg. |
| | ["SN: 730016-UP"] |
| 19 | ND090310-0490 | [1] | Valve, Overflow Komatsu | 0.08 kg. |
| | ["SN: 730016-UP"] |
| 20 | ND092220-0040 | [1] | Filter Komatsu | 0.006 kg. |
| | ["SN: 730016-UP"] |
| 21 | ND092223-0042 | [1] | Screw Komatsu | 0.063 kg. |
| | ["SN: 730016-UP"] |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
