0667607 Cylinder Block Fitting For HITACHI EX150LC-5 EX200-5 EX200-5 JPN EX200-5HG

• 0667607 Cylinder Bolck Fitting For HITACHI EX150LC-5 EX200-5 EX200-5 JPN EX200-5HG

• Specifiion

Product name	Cylinder block
Part number	0667607
Model	EX150LC-5 EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE MA145-5 RX2300
egory group	HITACHI excavator hydraulic cylinder parts
MOQ	1 PCS
Warranty	6 months
Payment term	T/T, Western Union, PAYPAL
Delivery time	1-3 days after receiving the payment
Packing	As request or standard packing
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS

• Compatible models

EX150LC-5 EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200SS-5

EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC)

EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE MA145-5 RX2300

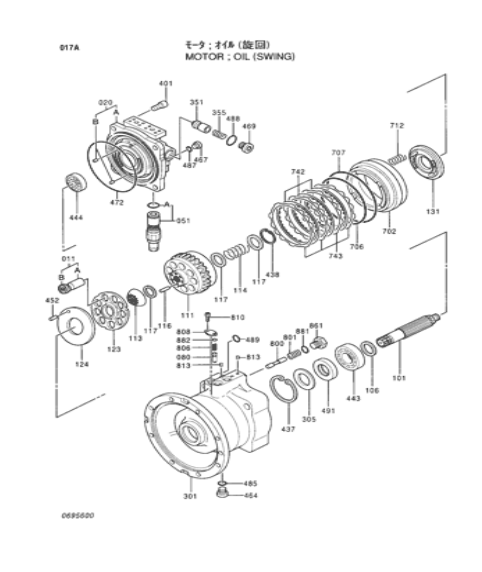

• Diagram parts list​

Pos.	Part No	Qty	Parts name	Comments
	4367036	[1]	MOTOR;OIL	0695600(SWING)
11	667601	[1]	PISTON ASS'Y
011A.	+++++++	[9]	PISTON
011B.	+++++++	[9]	SHOE
20	667602	[1]	CASING
020A.	+++++++	[1]	CASING
020B.	+++++++	[2]	PIN
51	695601	[2]	VALVE;RELIEF
051A.	A811030	[1]	O-RING
80	667604	[1]	PLUNGER	Y 0695604
80	695604	[1]	PLUNGER
101	667605	[1]	SHAFT
106	667606	[1]	SPACER
111	667607	[1]	CYL.
113	667608	[1]	BUSHING
114	667609	[1]	SPRING
116	365310	[12]	ROD;PUSH
117	667610	[3]	SPACER
123	667611	[1]	RETAINER
124	695602	[1]	PLATE
131	667613	[1]	PLATE;VALVE
301	695603	[1]	CASING
305	667615	[1]	COVER;SEAL
351	409215	[2]	PLUNGER
355	409216	[2]	SPRING
401	365318	[4]	BOLT;SOCKET
437	931346	[1]	RING;RETAINING
438	4069898	[1]	RING;RETAINING
443	667616	[1]	BRG.;ROL.
444	425114	[1]	BRG.;ROL.
452	313404	[1]	PIN
464	629404	[1]	PLUG
467	629404	[2]	PLUG
469	392502	[2]	PLUG
472	667617	[1]	O-RING
485	957366	[1]	O-RING
487	957366	[2]	O-RING
488	4506428	[2]	O-RING
489	4506412	[1]	O-RING
491	667618	[1]	SEAL;OIL
702	667619	[1]	PISTON
706	425115	[1]	O-RING
707	125431	[1]	O-RING
712	365331	[18]	SPRING;BRAKE
742	667620	[3]	PLATE;FRICTION
743	667621	[4]	PLATE
800	667622	[1]	SPOOL	Y 0695605
800	695605	[1]	SPOOL
801	667623	[1]	SPRING
806	667624	[1]	SPRING
808	667625	[1]	COVER
810	667626	[2]	BOLT;SOCKET
813	263019	[3]	PLUG
861	629404	[1]	PLUG
881	957366	[1]	O-RING
882	4506412	[1]	O-RING

• More other cylinder parts fit HITACHI machinery​

4316930 CYL.;ARM

EX150LC-5, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX225USR(LC), EX225USRK(LC), IZX200, IZX200LC, ZX160, ZX160LC-3,...

4317393 CYL.;BOOM (R)

EX200-5, EX200-5 JPN, EX200-5HG, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX225USR(LC), EX225USRK(LC), MA145-5

9101317 CYL.;ARM

EX200-3, EX210H-5 JPN, EX220-2, EX220-3, EX220-5, EX220-5 JPN, EX230-5

9147233 CYL. ;ARM

EX210H-5 JPN, EX210LC-5HHE, EX220-5, EX220-5 JPN, EX230-5, EX230H-5 JPN, EX230K-5

9101318 CYL.;BUCKET

EX220-2, EX220-3, EX220-5, EX220-5 JPN, EX230-5

9101316 CYL.;BOOM(for assembly of machine)

EX220-2, EX220-3, EX220-5, EX220-5 JPN, EX230-5

9147232 CYL.;BOOM

EX220-5, EX220-5 JPN, EX230-5, EX230H-5 JPN, EX230K-5

4643562 CYL.

EX200-5 JPN, ZX200, ZX225USR

4717320 CYL.

EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

4370783 CYL.;BOOM (L)

EX150LC-5

4319328 CYL.

RX2000-2, RX2300

4717104 CYL.

EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC...

0251927 CYL. ASS'Y

KH150-3, KH180-3, KH300, KH850-3

(9178276) CYL.;BOOM(for transportation)

EX220-5, EX220-5 JPN, EX220-5HHE, EX230-5, EX230H-5 JPN, EX230K-5, EX230LC-5HHE

• Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Packaging & Delivery

Packaging Details:

1. According to orders,pack the spare parts one by one by oil paper;

2. Put them into small carton boxes one by one;

3. Put the packed small carton boxes into bigger carton boxes one by one;

4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.

5. goods is packed by oil paper and plastic bags inside

6. using wooden package.

7. we support the custom-made demand for package

Port: Huangpu

Lead Time : Within 2 days after receiving the pay me.

Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.

• Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.

2. Warranty type: replacement of the parts that have quality problem.

3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance

• Our Company

Anto Machinery is made up of a professinal engineering team, with high experirence in genuine, OEM and aftermarket parts.

for excavators, bulldozers, forklift, loaders, and crane covering brand Hyundai , Sany , DOOSAN , Vo-lvo , HITACHI , KOBELCO , KOMATSU , KATO , JCB , LIEBHERR , SANY , XCMG , XGMA , LIUGONG , SHANTUI , etc.

We are with full range of data information for the engine parts, hydraulic parts ,seal parts, electrical parts, gear & reducer parts, cylinder parts, bucket parts, cab parts, etc. As exporting about 20 years, we now have customers the whole world including the countries Brazil, Mexico, Colombia, Venezuela, Peru, America, Canada, Russia, Poland, Ireland, Sweden, France, England, Romania, Spain, Portugal, Ukraine, Lithuania, Norway, Italy, Finland, UAE, Saudi Arabia, Israel, Iraq, Sudan, Kenya, Tanzania, Sri Lanka, Kazakhstan, Pakistan, Burma, Thailand, Vitenam, Philippines, Indonesia, Australia, New Zealand, etc.

Thanks very much to our customers support and big trust.

We will keep improving everyday. Any of your encouragement in inquiry and order is our motivation.

We warm welcome your visiting and consulting on your needed parts.
