- 6210-11-5232 6210115232 Clamp KOMATSU Excavator Exhaust Muffler Parts For PC160LC-8
| Name | Clamp |
| Parts No | 6210-11-5232 6210115232 |
| Machine Model | PC210 PC220 PC230NHD PC240 PC250 PC270 PC290 PC300 PW140 |
| Category | Exhaust Muffler And Mounting Bracket |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
ENGINES S6D102E SA6D102E SAA4D107E SAA6D102E SAA6D107E
EXCAVATORS HB205 HB215 PC160 PC200 PC200EL PC200EN PC200LL PC200Z PC210 PC220 PC220LL PC230NHD PC240 PC250 PC270 PC290 PC300 PW140 PW148 PW160 PW180 PW200 PW220 Komatsu
- More other clamp parts fit for KOMATSU machine
| 20Y-966-2310 CLAMP |
| HB205, HB215, PC160, PC190, PC200, PC2000, PC220, PC228, PC228US, PC270, TRAVEL |
| |
| 07281-02509 CLAMP |
| PC160, PC180, PC190 |
| |
| 14X-01-35581 CLAMP |
| D65EX, D65PX, D65WX, D85EX, D85PX, DRAWBAR,, HB205, HB215, PC160, PC180, PC190, PC200, PW148, PW160 |
| |
| ND146690-6020 CLAMP |
| PC1250, PC1250SP |
| |
| ND246770-6990 CLAMP,PIPING |
| PC1250, PC1250SP |
| |
| 20Y-979-6351 CLAMP |
| BP500, PC1250, PC1250SE, PC1250SP, PC200, PC300 |
| |
| 20Y-62-13190 CLAMP |
| HB205, HB215, PC160, PC190, PC200, PC220, PC228, PC228US, PC240, PC270, PC290, PC308 |
| |
| 07289-00170 CLAMP |
| D155A, D155AX, D375A, FRONT, GD555, GD655, GD675, HM250, HM300, HM400, PC2000, PC600, PC650, SAA6D140E, SAA6D170E, TRAVEL, WA380, WA430, WA800 |
| |
| 07299-00120 CLAMP |
| AIR, BATTERY, D31EX, D31PX, D375A, D37EX, D37PX, D39EX, D39PX, D65EX, D65PX, D65WX, FRONT, PC300, PC350, PRESSURE, RAIN, SAA6D114E, SAA6D125E, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA320, WA... |
| |
| ND246680-9730 CLAMP |
| PC1100, PC1100SE, PC1100SP, PC1800, PC200, PC200SC, PC210, PC220, PC230, PC240, PC250, PC290, PC600, PC650, PC750, PC750SE, PC800, PC800SE, PW130ES, PW150ES, PW170ES |
| |
| ND246780-1560 CLAMP |
| D155AX, D375A, PC1800, PC200, PC220, PC230, PC250, PC270, WA100, WA120, WA120L, WA150, WA180, WA180L, WA180PT, WA200, WA250, WA250L, WA250PT, WA320, WR11 |
| |
| 195-03-41530 CLAMP ASS'Y |
| D135A, D155A, D155AX, D275A, D375A, D475A, D85A, D85C, D85E, D85EX, D85MS, D85P, D85PX, PC1800, PC750, PC750SE |

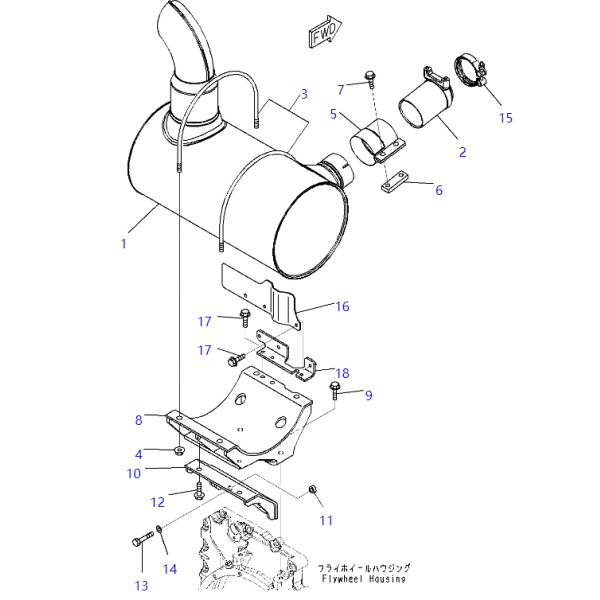

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 6751-11-5140 | [1] | Muffler Komatsu China | |
| | | | ["SN: B30001-UP"] | |
| 2 | 6751-11-2120 | [1] | Tube Komatsu | 1.56 kg. |
| | | | ["SN: B30001-UP"] | |
| 3 | 6754-11-5950 | [2] | U-bolt Komatsu China | |
| | | | ["SN: B30001-UP"] | |
| 4 | 01594-01210 | [4] | Nut Komatsu | 0.021 kg. |
| | | | ["SN: B30001-UP"] | |
| 5 | 6210-11-5232 | [1] | Clamp Komatsu | 0.29 kg. |
| | | | ["SN: B30001-UP"] | |
| 6 | 6206-11-5850 | [1] | Plate Komatsu | 0.16 kg. |
| | | | ["SN: B30001-UP"] | |
| 7 | 01435-01235 | [2] | Bolt Komatsu | 0.048 kg. |
| | | | ["SN: B30001-UP"] analogs:["0143521235"] | |
| 8 | 6751-11-5151 | [1] | Bracket Komatsu China | |
| | | | ["SN: B30001-UP"] | |
| 9 | 01435-01030 | [2] | Bolt Komatsu | 0.031 kg. |
| | | | ["SN: B30001-UP"] analogs:["0143521030"] | |
| 10 | 6751-11-2141 | [1] | Bracket Komatsu China | |
| | | | ["SN: B30001-UP"] | |
| 11 | 417-823-1460 | [2] | Spacer Komatsu | 0.01 kg. |
| | | | ["SN: B30001-UP"] | |
| 12 | 01435-01020 | [2] | Bolt Komatsu | 0.023 kg. |
| | | | ["SN: B30001-UP"] analogs:["0143521020"] | |
| 13 | 01010-81060 | [2] | Bolt Komatsu | 0.126 kg. |
| | | | ["SN: B30001-UP"] analogs:["0101051060"] | |
| 14 | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| | | | ["SN: B30001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | |
| 15 | 6732-81-8220 | [1] | Clamp Komatsu | 0.126 kg. |
| | | | ["SN: B30001-UP", "KIT-FLAG: S"] | |
| 16 | 6751-11-5190 | [1] | Cover Komatsu China | |
| | | | ["SN: B30001-UP"] | |
| 17 | 01435-00820 | [6] | Bolt Komatsu | 0.015 kg. |
| | | | ["SN: B30001-UP"] analogs:["0143520820"] | |
| 18 | 6751-11-5160 | [1] | Bracket Komatsu China | |
| | | | ["SN: B30001-UP"] | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
