• 566-32-05221 566-32-53221 Brake Pad KOMATSU Excavator Spare Parts For HD325-7

• Specification

Name	Brake Pad
Parts No	566-32-05221 566-32-53221 566-32-53211 R5663205221
Machine Model	HD325 HD405 HD465 HD605 HD785 HD985
Category	Front Axle
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other brake pad parts fit for KOMATSU machine

569-74-61520 PAD

HD325, HD405, HD465, HD605

566-04-13143 PAD

HD200D, HD205, HD320, HD325, HD405

566-04-13142 PAD

HD200, HD320, HD325, HD460, HD465, HD605

566-04-41180 PAD

HD205, HD325, HD405, HD465, HD605

561-34-61110 PAD

AFP49, HD1500, HD325, HD405, HD465, HD605, HD785, HD985, HM250, HM300, HM300TN, HM350, HM400

561-34-41110 PAD

HD325, HD465, HD785, HD985

561-74-61521 PAD

330M, HD785, HD985

561-74-61511 PAD

330M, HD785, HD985

585-34-21110 PAD

HD985

567-54-43360 PAD

HD205

BF1856 PAD, RUBBER

AFP49, HD1500

BW053748 PAD,SLIDE

HA250, HA270

VF3878 PAD (NOT INCLUDED IN ASSM)

BFA40

JG5652 PAD, BODY

BFA40

LA0344 PAD, FELT

AFP49, HD1500

23B-953-B120 PAD {ROOF}

GD555

MY482-8024-40 PAD,PEDAL

GD305A, GD355A, GD405A

3EB-33-31270 PAD,HORN

F4EC, F5EC, F6EC, FB10/14EX, FB10/14EXF, FB15/18EX, FB15/18EXF, FB15/18EXG, FB15/18EXGF, FB20/25EX, FB20/25EXF, FB20/25EXG, FB20/25EXGF, FB20HB/25HB, FB30, FB30EX, FD10/15, FD100, FD10C, FD10LT, FD115...

56D-80-16710 PAD

HM300TN

56D-80-16671 PAD

HM300TN

585-34-21110 PAD

HD985

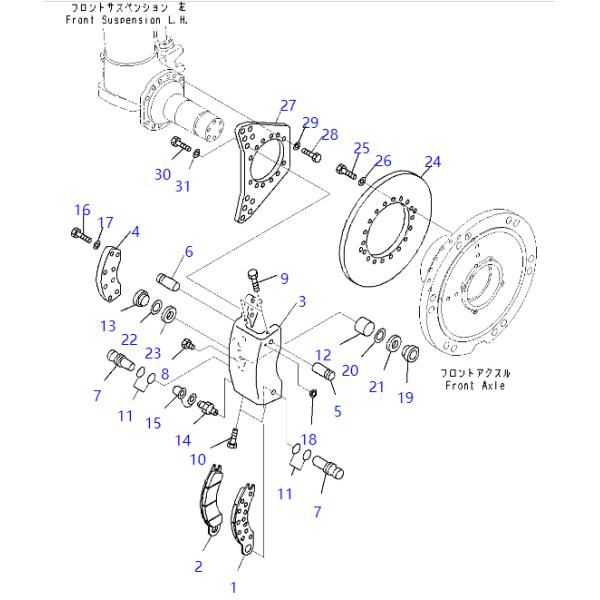

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
	566-32-53101	[1]	Brake Assembly Komatsu	72.201 kg.
			["SN: 7590-UP"] |$0.
	566-32-05221	[1]	Pad Assembly Komatsu	6.435 kg.
			["SN: 7590-UP"] analogs:["5663253221", "5663253211", "R5663205221"] |$1.
1	566-32-53211	[1]	Pad Komatsu	6.435 kg.
			["SN: 7590-UP"] analogs:["5663205221", "5663253221"]
2	566-32-53221	[1]	Pad Komatsu	6.435 kg.
			["SN: 7590-UP"] analogs:["5663205221", "5663253211"]
3.	566-32-53230	[1]	Plate Komatsu	72.201 kg.
			["SN: 7590-UP"] analogs:["5663253101"]
4.	566-32-53240	[1]	Plate Komatsu China
			["SN: 7590-UP"]
5.	566-32-53260	[1]	Pin Komatsu	0.43 kg.
			["SN: 7590-UP"]
6.	566-32-53270	[1]	Pin Komatsu	0.39 kg.
			["SN: 7590-UP"]
7.	566-32-53281	[2]	Pin Komatsu	0.61 kg.
			["SN: 7590-UP"]
8.	566-32-53290	[1]	Plug Komatsu	0.002 kg.
			["SN: 7590-UP"]
9.	566-32-53310	[3]	Bolt Komatsu China
			["SN: 7590-UP"]
10.	566-32-53320	[1]	Bolt Komatsu China
			["SN: 7590-UP"]
11.	566-32-53750	[4]	O-ring Komatsu	0.001 kg.
			["SN: 7590-UP"] analogs:["5673271750"]
12.	566-32-53810	[6]	Piston Komatsu	0.825 kg.
			["SN: 7590-UP"]
13.	566-32-53820	[3]	Plug Komatsu	0.207 kg.
			["SN: 7590-UP"]
14.	566-32-53860	[2]	Bleeder Komatsu	0.016 kg.
			["SN: 7590-UP"]
15.	232-32-11350	[2]	Cap Komatsu	0.002 kg.
			["SN: 7590-UP"]
16.	566-32-53880	[8]	Bolt Komatsu China
			["SN: 7590-UP"]
17.	566-32-53890	[8]	Washer Komatsu China
			["SN: 7590-UP"]
18.	566-32-53250	[1]	Plug Komatsu China
			["SN: 7590-UP"]
18.	566-32-05210	[1]	Service Kit Komatsu	0.212 kg.
			["SN: 7590-UP"] analogs:["5663205211", "5663253730", "5663253720", "5663253710"]
24	566-32-51120	[1]	Disk Komatsu	52.201 kg.
			["SN: 7590-UP"]
25	01010-62065	[18]	Bolt Komatsu	0.226 kg.
			["SN: 7590-UP"] analogs:["0101052065", "0101032065", "0101082065"]
26	01643-32060	[18]	Washer Komatsu China	0.044 kg.
			["SN: 7590-UP"] analogs:["802170007", "0164322045", "0164302045"]
27	566-32-51131	[1]	Plate Komatsu China
			["SN: 7590-UP"]
28	01010-62055	[12]	Bolt Komatsu China	0.202 kg.
			["SN: 7590-UP"] analogs:["0101052055", "0101032055", "0101082055"]
29	01602-22060	[12]	Washer Komatsu	0.026 kg.
			["SN: 7590-UP"]
30	01010-62465	[10]	Bolt Komatsu	0.341 kg.
			["SN: 7590-UP"] analogs:["0101032465", "0101052465", "0101082465"]
31	01643-32460	[10]	Washer Komatsu China	0.063 kg.
			["SN: 7590-UP"] analogs:["R0164332460"]
