• 423-46-51410 4234651410 Bushing KOMATSU Wheel Loader Spare Parts For WA380-7

• Specification

Name	Bushing
Parts No	423-46-51410 4234651410
Machine Model	WA380 WA470
Category	Hinge Pin
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

• More other bushing parts fit for KOMATSU machine

423-46-51410 BUSHING

WA380, WA470

M013191004009 BUSHING

EC105Z, EC105ZS, EC35V, EC35VS

705-92-80620 BUSHING

HM250, HM300

2692-6-32130 BUSHING

JV06H, JV06HM, JV08H, JV08HM

566-15-15940 BUSHING

WS16

3FE-15-11570 BUSHING

F4EC, F5EC, F6EC, FD100, FD115, FD135, FD150E, FD160E

711-14-12550 BUSHING

540, 540B

42U-17-H0P51 BUSHING

WA65, WA65PT, WA75, WA90

707-52-90960 BUSHING

WA500

42R-17-H0R76 BUSHING

WA200, WA200PZ, WA250, WA250PZ

720-2T-14310 BUSHING

CK20, CK25, CK30, CK35, SK1020, SK1026, SK714, SK815, SK820

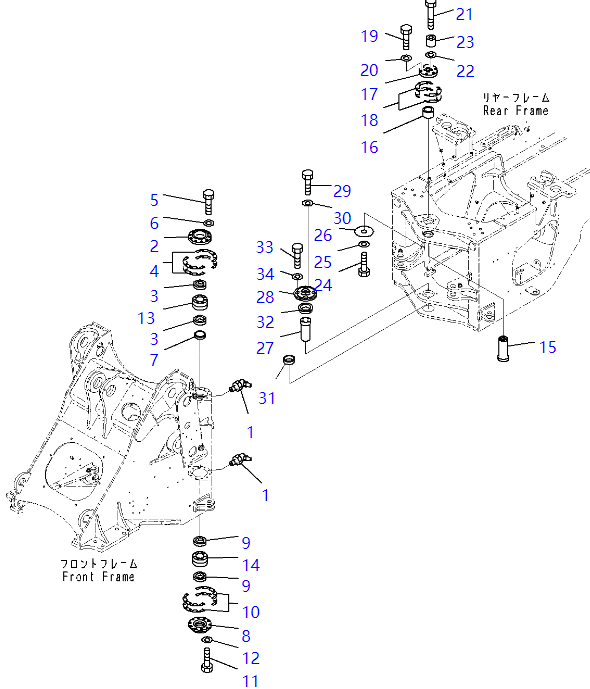

• Catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	07020-00675	[2]	Fitting, Grease Komatsu China	0.011 kg.
			["SN: 10001-UP"] analogs:["21D0989220", "37A099G004"]
2	421-46-11710	[1]	Retainer Komatsu OEM	2.2 kg.
			["SN: 10001-UP"]
3	421-09-11310	[2]	Seal, Dust Komatsu OEM	0.37 kg.
			["SN: 10001-UP"] analogs:["4240911310"]
4	421-46-00030	[1]	Shim Assembly Komatsu China
			["SN: 10001-UP"]
5	01010-81240	[10]	Bolt Komatsu	0.052 kg.
			["SN: 10001-UP"] analogs:["801015573", "0101051240"]
6	01643-31232	[10]	Washer Komatsu	0.027 kg.
			["SN: 10001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
7	424-46-11171	[1]	Spacer Komatsu OEM	0.4 kg.
			["SN: 10001-UP"]
8	421-46-11470	[1]	Retainer Komatsu OEM	2.2 kg.
			["SN: 10001-UP"]
9	07011-00080	[2]	Seal, Oil Komatsu	0.1 kg.
			["SN: 10001-UP"]
10	421-46-00040	[1]	Shim Assembly Komatsu China
			["SN: 10001-UP"]
11	01010-81235	[10]	Bolt Komatsu	0.048 kg.
			["SN: 10001-UP"] analogs:["0101051235", "01010E1235", "801015136"]
13	421-46-11361	[1]	Bearing Komatsu OEM	3.71 kg.
			["SN: 10001-UP"]
15	424-46-11183	[1]	Pin Komatsu	7.27 kg.
			["SN: 10001-UP"]
16	424-46-11160	[1]	Spacer Komatsu OEM	0.9 kg.
			["SN: 10001-UP"]
17	421-46-11421	[1]	Cover Komatsu OEM	3.5 kg.
			["SN: 10001-UP"]
18	421-46-00050	[1]	Shim Assembly Komatsu	0.375 kg.
			["SN: 10001-UP"]
19	01010-81250	[6]	Bolt Komatsu	0.061 kg.
			["SN: 10001-UP"] analogs:["0101051250"]
21	01011-61625	[4]	Bolt Komatsu	0.227 kg.
			["SN: 10001-UP"] analogs:["0101131625", "0101181625"]
22	01643-31645	[4]	Washer Komatsu	0.072 kg.
			["SN: 10001-UP"] analogs:["802170005", "0164301645"]
23	423-46-41430	[4]	Spacer Komatsu China
			["SN: 10001-UP"]
24	01010-81630	[1]	Bolt Komatsu	0.081 kg.
			["SN: 10001-UP"] analogs:["0101061630", "0101051630", "0101031630"]
26	419-70-11340	[1]	Plate Komatsu	0.35 kg.
			["SN: 10001-UP"]
27	423-46-51420	[1]	Pin Komatsu China
			["SN: 10001-UP"]
28	423-46-51400	[1]	Retainer Komatsu China
			["SN: 10001-UP"]
29	01010-61235	[4]	Bolt Komatsu	0.048 kg.
			["SN: 10001-UP"] analogs:["01010E1235", "0101031235", "M018011200356"]
30	01643-81232	[4]	Washer, Flat Komatsu	0.027 kg.
			["SN: 10001-UP"] analogs:["0164331232", "0164371232", "802170003", "0614331232"]
31	421-46-12331	[1]	Bushing Komatsu OEM	0.52 kg.
			["SN: 10001-UP"]
32	423-46-51410	[1]	Bushing Komatsu China
			["SN: 10001-UP"]

• We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.

2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.

3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.

4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.

5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.

6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.

• Advantage

1. Offer Top quality & competitive products

2. Support 12-month warranty

3. 100% tested before shipping

4. Delivery in time

5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator

6. More than 15 years production and 11 years foreign trade experience

7. Professional QC team

8. Best sales team, 24 hours service

• Packing and Shipping

Packing Details :

inner packing : plastic film for wrapping

external packing : wooden

Shipping :

within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,

2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.

3. By Sea: Delivery from the Huangpu port .
